Z477 Framed Horse Head

Z477 Framed Horse Head ; Abbotwares; Los (ID = 2601890) Radio Z477 Framed Horse Head ; Abbotwares; Los (ID = 2601891) Radio
Z477 Framed Horse Head ; Abbotwares; Los (ID = 2601892) Radio Z477 Framed Horse Head ; Abbotwares; Los (ID = 2601893) Radio
Z477 Framed Horse Head ; Abbotwares; Los (ID = 2601894) Radio
Use red slider bar for more.
Z477 Framed Horse Head ; Abbotwares; Los (ID = 2601890) Radio
Abbotwares; Los: Z477 Framed Horse Head [Radio] ID = 2601890 1400x1718
Select picture or schematic to display from thumbnails on the right and click for download.
For model Z477 Framed Horse Head, Abbotwares; Los Angeles, CA:
Picture from Mark Sullivan.

Country:  United States of America (USA)
Manufacturer / Brand:  Abbotwares; Los Angeles, CA
Year: 1948 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AT6 50B5 35W4
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 110 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: Z477 Framed Horse Head - Abbotwares; Los Angeles, CA
Material Metal case
Shape Design Radio or Novelty / Gadget - fancy or unusual shape.
Dimensions (WHD) 11.5 x 13 x 4 inch / 292 x 330 x 102 mm
Notes

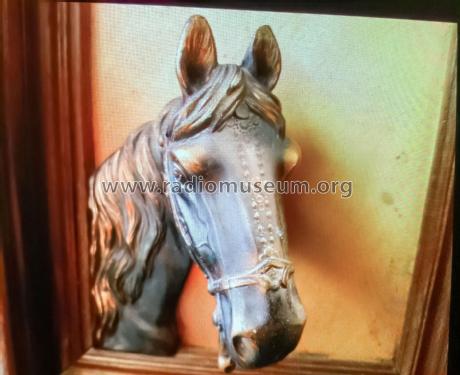

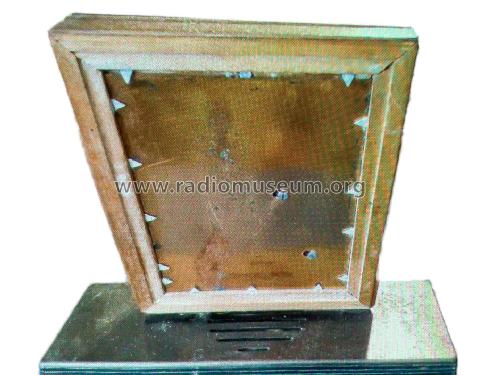

All other Abbotwares models have a statue mounted on top of the radio.  A typical model is the Z477 Standing Horse.  The Z477 Framed Horse Head differs in that a picture frame is used.  All other chassis details appear to remain the same.

Model page created by David Erali. See "Data change" for further contributors.
