For model Z477 Standing Horse, Abbotwares; Los Angeles, CA:
Picture courtesy of Jim Hopkins

Country:  United States of America (USA)
Manufacturer / Brand:  Abbotwares; Los Angeles, CA
Year: 1947–1949 Category: Broadcast Receiver - or past WW2 Tuner

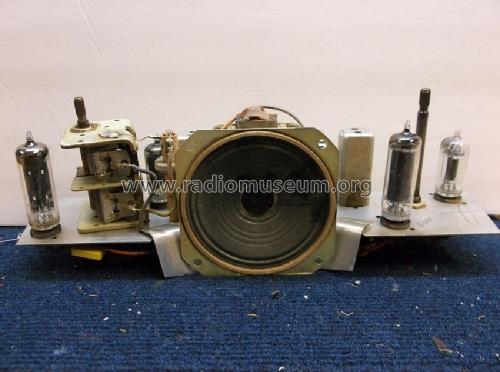

Valves / Tubes 5: 12BE6 12BA6 12AT6 50B5 35W4
schematic requested
Main principle Superhet with RF-stage; ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 110 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Z477 Standing Horse - Abbotwares; Los Angeles, CA
Material Metal case
Shape Design Radio or Novelty / Gadget - fancy or unusual shape.
Dimensions (WHD) 11.5 x 13 x 4 inch / 292 x 330 x 102 mm
Notes

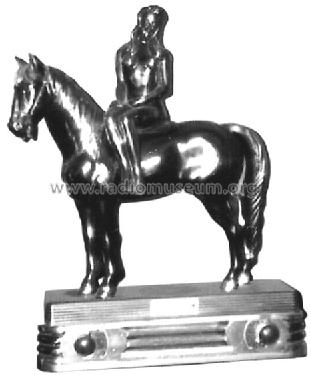

These horse radios are collectables. Abbotwares used the same basic radio in many different designs of the horses - such as: "Standing Horse", the most often seen version, while the "Rearing Horse & Cowboy" is seldom encountered. Even rare are "Prancing Horse & Cowgirl", "Lady Godiva", "Moose" and "Hula Dancer". All these models have the chassis number Z-477. Please use the right model when uploading collector prices because they differ greatly depending on the model.

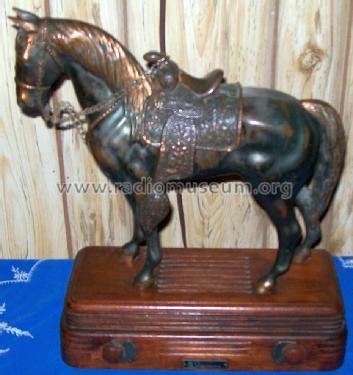

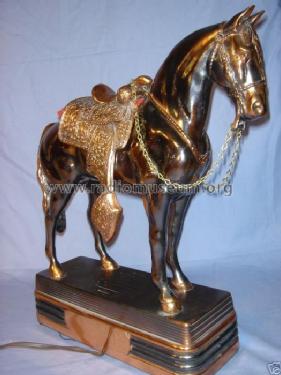

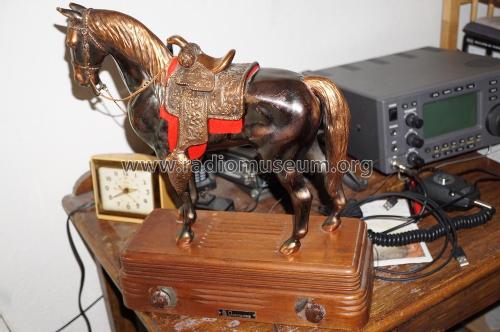

For the "Standing Horse": there is a saddle blanket under the removable saddle.

For this model and others, please look up this article and check the models present before creating an other. At the moment we do not distinguish the materials and sizes. This will come later when we can present more pictures. Now we include data in the caption - if well done.

Net weight (2.2 lb = 1 kg) 4.5 kg / 9 lb 14.6 oz (9.912 lb)
Mentioned in Steins 2, Grinders ++
Literature/Schematics (1) Machine Age to Jet Age II (page 40.)

Model page created by Marvin J. Glassman. See "Data change" for further contributors.
