1179; ACEC, Ateliers de (ID = 115345) R-Player
ACEC, Ateliers de: 1179 [R-Player] ID = 115345 796x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 1179, ACEC, Ateliers de Constructions Électriques de Charleroi; Charleroi:

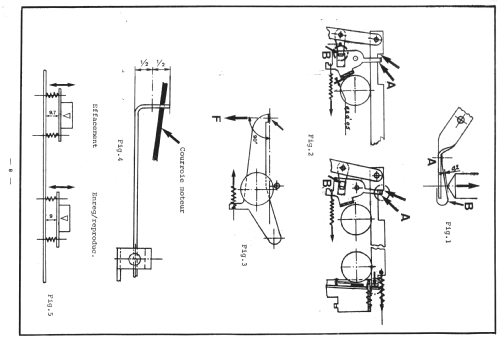

service manual

Country:  Belgium
Manufacturer / Brand:  ACEC, Ateliers de Constructions Électriques de Charleroi; Charleroi
Year: 1968 Category: Sound/Video Recorder and/or Player
Valves / Tubes 3: ECC83 ECL82 DM71
Main principle Audio-Amplification
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 1179 - ACEC, Ateliers de
Dimensions (WHD) 360 x 230 x 180 mm / 14.2 x 9.1 x 7.1 inch
Net weight (2.2 lb = 1 kg) 6.5 kg / 14 lb 5.1 oz (14.317 lb)
Source of data -- Original-techn. papers.

Model page created by Hugo Sneyers. See "Data change" for further contributors.



All listed radios etc. from ACEC, Ateliers de Constructions Électriques de Charleroi; Charleroi
Here you find 233 models, 225 with images and 38 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
