Côte d'Azur 5050

Côte d'Azur 5050; ACEC, Ateliers de (ID = 654108) Radio
Use red slider bar for more.
Côte d'Azur 5050; ACEC, Ateliers de (ID = 654108) Radio

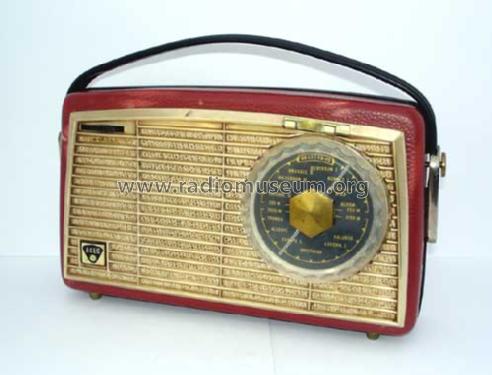

ACEC, Ateliers de: Côte d'Azur 5050 [Radio] ID = 654108 500x381
Select picture or schematic to display from thumbnails on the right and click for download.
For model Côte d'Azur 5050, ACEC, Ateliers de Constructions Électriques de Charleroi; Charleroi

Country:  Belgium
Manufacturer / Brand:  ACEC, Ateliers de Constructions Électriques de Charleroi; Charleroi
Year: 1960–1962 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: OC44 OC45 OC45 OC71 OC73 OC74 or. OC72 OC74 or. OC72 OA79 OA79
Main principle Superheterodyne (common)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 3 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Côte d'Azur 5050 - ACEC, Ateliers de
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 260 x 150 x 70 mm / 10.2 x 5.9 x 2.8 inch
Notes

2 gammes PO et GO. Antenne incorporée. Prise pour antenne auto et pour "écoute discrète".

Boîtier en polystyrène antichocs, gainé de ton beige, bleu, ou rouge.

Mentioned in -- Original prospect or advert
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Jean-Paul Moriamé. See "Data change" for further contributors.
