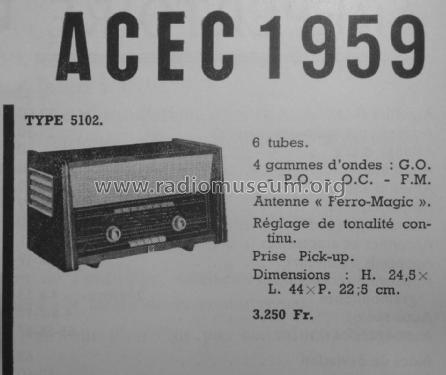

5102

Country:  Belgium
Manufacturer / Brand:  ACEC, Ateliers de Constructions Électriques de Charleroi; Charleroi
Year: 1957/1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: UCC85 UCH81 UF89 UABC80 UL84 UY85
Main principle Superheterodyne (common); ZF/IF 452 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage AC/DC-set / 127/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 5102 - ACEC, Ateliers de
Dimensions (WHD) 285 x 166 x 181 mm / 11.2 x 6.5 x 7.1 inch
Net weight (2.2 lb = 1 kg) 2.8 kg / 6 lb 2.7 oz (6.167 lb)
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Hugo Sneyers. See "Data change" for further contributors.
