UCC85

Information - Help
ID = 943

Country:
Europe
Brand: Common type Europe tube/semicond.
Tube type:  Double Triode   VHF
Identical to UCC85 = 26AQ8 = 10L14 = 10LD14 = B109
Similar Tubes
Heater different:
  PCC85
First year 1954 Tube leaflet collection E.Erb Analysis by original leaflets
First Source (s)
Oct.1953 : Telefunken-Röhrenmitteilungen Nr. 5608-12
Feb.1954 : Funkschau # 3

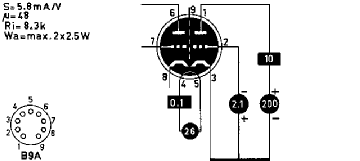

Base Noval, 9 pin miniature (USA pico-9) B9A
Was used by Radio/TV-reception etc.
Filament Vf 26 Volts / If 0.1 Ampere / Indirect / Specified current AC/DC ~ = (Series working)
Tube prices 13 Tube prices (visible for members only)
Information source
  UCC85: Courtesy Bureau Belper (De Muiderkring, Bussum), Scan Frank Philipse
Karel De Reus †

UCC85: scc
Christian Schaufelberger

More ...

UCC85: Datenblatt Funkwerk Erfurt
Wolfgang Eckardt

More ...

UCC85: Telefunken Taschenbuch 1971
Anonymous 15 Collector

More ...

from Just Qvigstad

Usage in Models 1= 1952? ; 4= 1954?? ; 7= 1954? ; 19= 1954 ; 19= 1955?? ; 13= 1955? ; 56= 1955 ; 5= 1956?? ; 21= 1956? ; 85= 1956 ; 12= 1957?? ; 21= 1957? ; 54= 1957 ; 16= 1958?? ; 24= 1958? ; 85= 1958 ; 7= 1959?? ; 10= 1959? ; 49= 1959 ; 40= 1960?? ; 8= 1960? ; 42= 1960 ; 6= 1961?? ; 15= 1961? ; 32= 1961 ; 2= 1962?? ; 14= 1962? ; 14= 1962 ; 3= 1963?? ; 8= 1963? ; 31= 1963 ; 4= 1964?? ; 13= 1964? ; 18= 1964 ; 11= 1965?? ; 13= 1965? ; 8= 1965 ; 2= 1966? ; 3= 1966 ; 1= 1967?? ; 2= 1967? ; 5= 1967 ; 1= 1968?? ; 1= 1968 ; 2= 1969?? ; 1= 1969? ; 1= 1970?? ; 1= 9999?? ; 1= 9999? ; 1= 9999

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):812
