• Country
• Belgium

• Manufacturer / Brand
• ACEC, Ateliers de Constructions Électriques de Charleroi; Charleroi

• Year
• 1963/1964

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 244095

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• AF114 AF115 AF116 AF116 AF116 OC71 OC71 OC74 OC74

• Main principle
• Superheterodyne (common); 3 AF stage(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Dry Batteries / 4 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Côte d'Azur 5161 AM/FM - ACEC, Ateliers de

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 245 x 145 x 65 mm / 9.6 x 5.7 x 2.6 inch

• Notes

• Voir aussi:

  Aristona SA6242T, Philips Svenska L3S21T,  Radiola RA6242T /00X et RA6242T /00F et Siera SA6242.

• Mentioned in

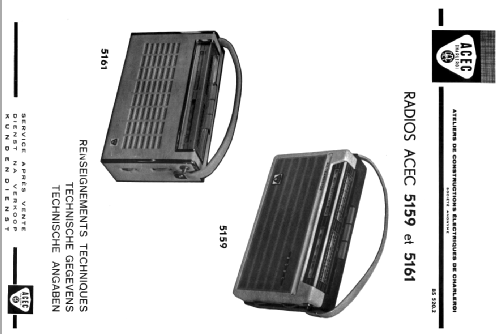

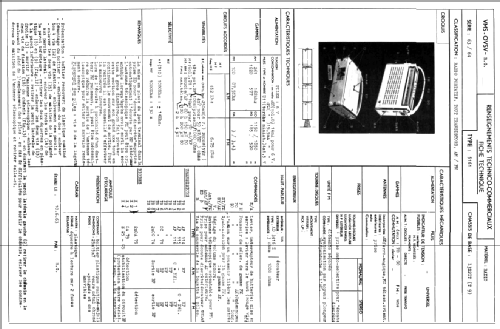

• -- Original-techn. papers.

• Author
• Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
