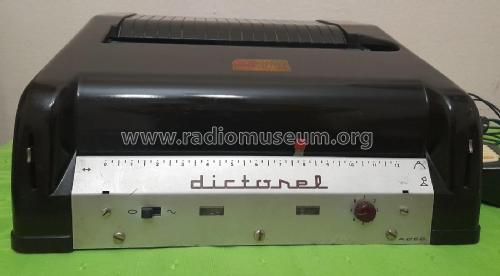

Dictorel 406

Dictorel 406; ACEC, Ateliers de (ID = 1852310) R-Player Dictorel 406; ACEC, Ateliers de (ID = 1852319) R-Player
Dictorel 406; ACEC, Ateliers de (ID = 1852320) R-Player Dictorel 406; ACEC, Ateliers de (ID = 1852322) R-Player
Dictorel 406; ACEC, Ateliers de (ID = 1852323) R-Player Dictorel 406; ACEC, Ateliers de (ID = 1852325) R-Player
Dictorel 406; ACEC, Ateliers de (ID = 1852326) R-Player Dictorel 406; ACEC, Ateliers de (ID = 1852329) R-Player
Use red slider bar for more.
Dictorel 406; ACEC, Ateliers de (ID = 1852310) R-Player
ACEC, Ateliers de: Dictorel 406 [R-Player] ID = 1852310 1400x1249
Select picture or schematic to display from thumbnails on the right and click for download.
For model Dictorel 406, ACEC, Ateliers de Constructions Électriques de Charleroi; Charleroi

Country:  Belgium
Manufacturer / Brand:  ACEC, Ateliers de Constructions Électriques de Charleroi; Charleroi
Year: 1954 Category: Sound/Video Recorder and/or Player
Valves / Tubes 3: ECC40 EL41 6J6 or ECC91
Main principle Audio-Amplification
Wave bands - without
Details Other Recorder/Player
Power type and voltage Alternating Current supply (AC) / 110; 150; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Dictorel 406 - ACEC, Ateliers de
Material Metal case
Shape Tablemodel, low profile (big size).
Notes

Dictating machine. which uses a wide magnetic tape wrapped around a drum as recording medium. The magnetic track spirales around the drum from one side to the other. By moving the head backwards, the secretary could hear a passage again.

Model page created by Ciro Guidi. See "Data change" for further contributors.
