• Country
• Argentina

• Manufacturer / Brand
• ACHE Electrónica S.A.I.C., Buenos Aires

• Year
• 1967

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 290946

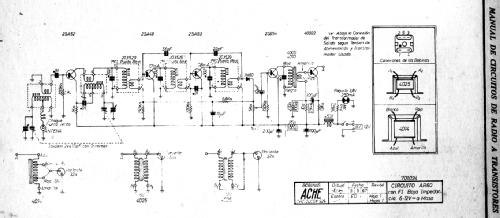

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 5

• Semiconductors
• 2SA52 2SA49 2SA53 2SB54 40022

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 6; 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: AR-60 [701.034] - ACHE Electrónica S.A.I.C.,

• Mentioned in
• RA:Manual de Circuitos de Radio, Héctor Algarra (h.)

• Author
• Model page created by Carlos A. Pieroni-García. See "Data change" for further contributors.
