For model Acme Amplifier Y-2, Acme Apparatus Co.; Cambridge (MA):
Acme Audio Amplifier Type Y-2

Country:  United States of America (USA)
Manufacturer / Brand:  Acme Apparatus Co.; Cambridge (MA)
Year: 1920 Category: Audio Amplifier or -mixer
Valves / Tubes 1: VT-Class-I or B_Moorhead-Shaw
Main principle Audio-Amplification; 1 AF stage(s)
Wave bands - without
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Acme Amplifier Y-2 - Acme Apparatus Co.; Cambridge
Material Wooden case, TUBES VISIBLE.
Shape Tablemodel, with any shape - general.

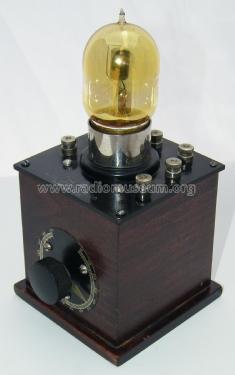

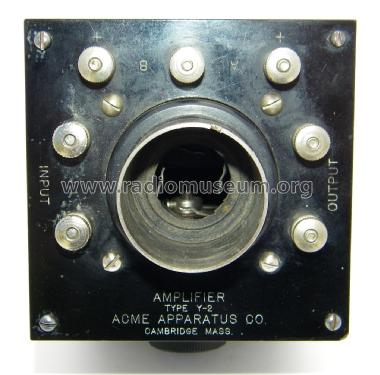

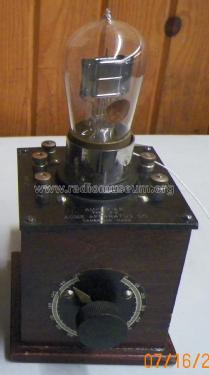

Notes The Acme Apparatus Company Acme Amplifier was a single stage amplifier. It had a small wood case with the tube socket exposed on top.
Price in first year of sale 13.00 $
Literature/Schematics (1) August 1920 QST advertisement page 66

Model page created by Alan Larsen. See "Data change" for further contributors.
