4 Tube Reflex kit

4 Tube Reflex kit ; Acme Apparatus Co.; (ID = 1425346) Kit 4 Tube Reflex kit ; Acme Apparatus Co.; (ID = 1425347) Kit
4 Tube Reflex kit ; Acme Apparatus Co.; (ID = 1425348) Kit 4 Tube Reflex kit ; Acme Apparatus Co.; (ID = 1425349) Kit
4 Tube Reflex kit ; Acme Apparatus Co.; (ID = 1425350) Kit 4 Tube Reflex kit ; Acme Apparatus Co.; (ID = 1482506) Kit
4 Tube Reflex kit ; Acme Apparatus Co.; (ID = 1482508) Kit 4 Tube Reflex kit ; Acme Apparatus Co.; (ID = 1482509) Kit
Use red slider bar for more.
4 Tube Reflex kit ; Acme Apparatus Co.; (ID = 1425346) Kit
Acme Apparatus Co.;: 4 Tube Reflex kit [Kit] ID = 1425346 933x521
Select picture or schematic to display from thumbnails on the right and click for download.
For model 4 Tube Reflex kit, Acme Apparatus Co.; Cambridge (MA):
eBay seller x3rdplanet March 2, 2013

Country:  United States of America (USA)
Manufacturer / Brand:  Acme Apparatus Co.; Cambridge (MA)
Year: 1923/1924 Category: Kit (Parts plus instruction) or building instructions only
Valves / Tubes 4:
Main principle TRF without regeneration; Reflex
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: 4 Tube Reflex kit - Acme Apparatus Co.; Cambridge
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 15 x 11 x 8 inch / 381 x 279 x 203 mm
Notes

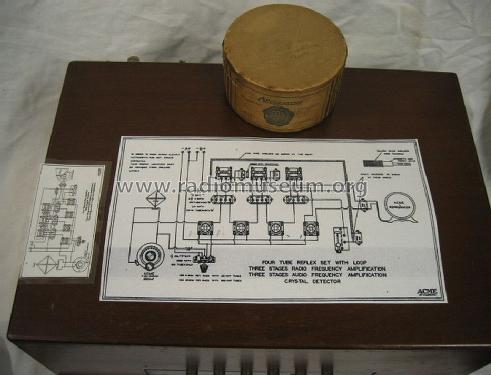

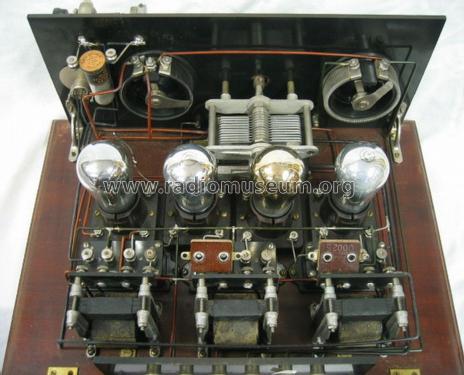

This is a Reflex made from ACME parts following an ACME construction envelope.

Net weight (2.2 lb = 1 kg) 15 lb 0 oz (15 lb) / 6.810 kg

Model page created by Ernst Erb. See "Data change" for further contributors.



All listed radios etc. from Acme Apparatus Co.; Cambridge (MA)
Here you find 20 models, 19 with images and 4 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
