321K49 Tele-Bar Ch= 21L1 & 3C1

321K49 Tele-Bar Ch= 21L1 & 3C1; Admiral brand (ID = 1734909) TV Radio 321K49 Tele-Bar Ch= 21L1 & 3C1; Admiral brand (ID = 1349688) TV Radio
321K49 Tele-Bar Ch= 21L1 & 3C1; Admiral brand (ID = 1349689) TV Radio 321K49 Tele-Bar Ch= 21L1 & 3C1; Admiral brand (ID = 1734908) TV Radio
Use red slider bar for more.
321K49 Tele-Bar Ch= 21L1 & 3C1; Admiral brand (ID = 1734909) TV Radio
Admiral brand: 321K49 Tele-Bar Ch= 21L1 & 3C1 [TV Radio] ID = 1734909 1400x1050

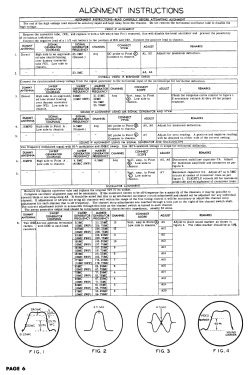

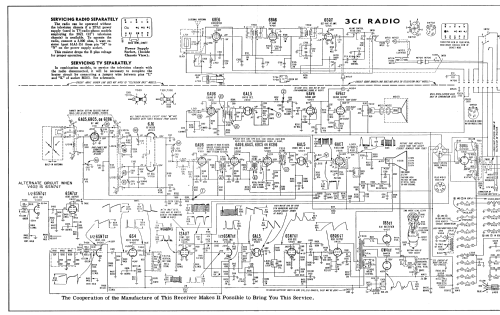

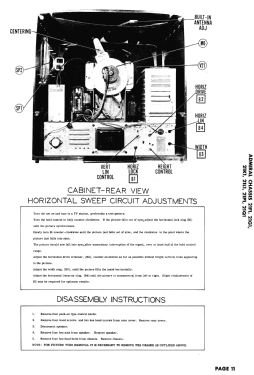

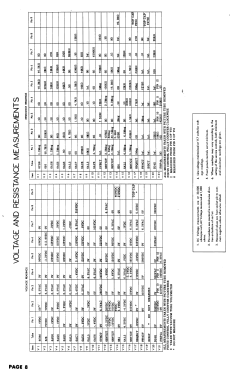

Select picture or schematic to display from thumbnails on the right and click for download.
For model 321K49 Tele-Bar Ch= 21L1 & 3C1, Admiral (brand) Continental Radio & Television Co.; Chicago, IL

Country:  United States of America (USA)
Manufacturer / Brand:  Admiral (brand) Continental Radio & Television Co.; Chicago, IL
alternative name

Continental Radio & TV
Year: 1951 Category: Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
Valves / Tubes 24: 6BE6 6BA6 6AV6 or 6AT6 6CB6 or 6BC5 or 6AG5 6J6 6AU6 6AU6 or 6AG5 or 6BC5 or 6CB5 6AU6 or 6AG5 or 6BC5 or 6CB5 6AL5 6AC7 6AU6 6AL5 6AU6 6V6GT 12AU7 6SN7GT 6S4 or 6SN7GT 6AL5 or 6H6 or 12H6 6SN7GT 6BQ6GT 6W4GT 5U4GT 20CP4 or 20DP4
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110-120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
Power out
from Radiomuseum.org Model: 321K49 Tele-Bar Ch= 21L1 & 3C1 - Admiral brand Continental
Material Wooden case
Shape Console with any shape - in general
Notes

Admiral Tele-Bar 321K49, TV chassis 21L1, AM radio chassis 3C1.

TV with US FCC standard VHF turret tuner channels 2 through 13; 20" b/w CRT. Built-in directional Roto-Scope antenna. 3-speed "Triple-Play" phonograph and "Dynamagic" radio (540 - 1610 KC) in combined, speperate housing.

Different cabinet versions were available: 321K46 Period Mahogany, 321K47 Modern Blonde and 321K49 Modern Silver Fox. See also models 321F46/47/49 for versions with AM/FM radio.

Advertisements for Tele-Bar promote a 21" picture tube.

SAMS photofact lists picture tube 20RP4 as alternative, as well as some other alternatives. The tube line-up is taken from the original sticker. First three listed tubes are for the radio part.

Mentioned in Photofact Folder, Howard W. SAMS (Set 135, Folder 2, Date 6/51)
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 117, Folder 2, Date 12/50 (radio chassis))

Model page created by Mark Hippenstiel. See "Data change" for further contributors.
