322DX16 Ch= 22E2
Admiral (brand) Continental Radio & Television Co.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Admiral (brand) Continental Radio & Television Co.; Chicago, IL
- Year
- 1953 ?
- Category
- Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
- Radiomuseum.org ID
- 219580
-
- alternative name: Continental Radio & TV
Admiral advert 1953
Admiral advert 1953
Admiral advert ~1953

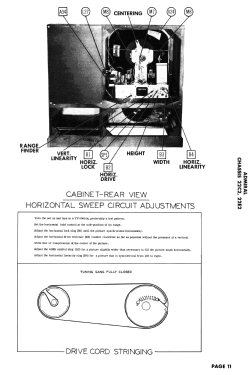

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 24
- Valves / Tubes
- 6BZ7 6J6 6CB6 6CB6 6AG5 12AT7 or 12AU7 6AC7 6AU6 6AU6 6AL5 6AV6 6V6GT 12AU7 6SN7GT 6S4 6AL5 6SN7GT 6CD6G 6W4GT 1B3GT 5U4G 6BE6 6BA6 21EP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 322DX16 Ch= 22E2 - Admiral brand Continental
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 41 x 37 x 22.5 inch / 1041 x 940 x 572 mm
- Notes
-

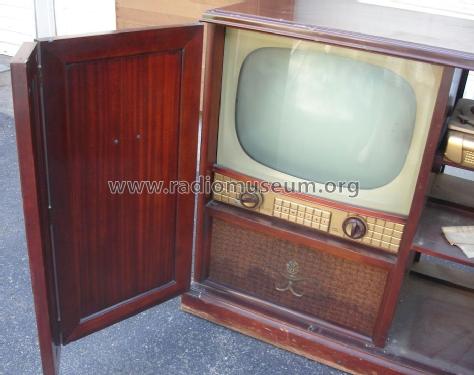

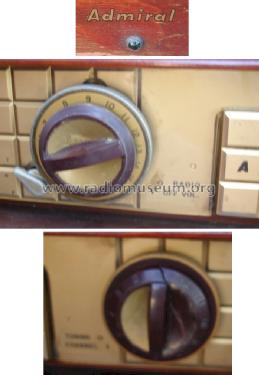

Admiral model 322DX16 is a 21” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 22E2, TV-AM-phono combination receiver, VHF tuner 94D47-2 and picture tube 21EP4A. Mahogany, console style with doors.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 201, folder 2, dated 4-53)
- Author
- Model page created by a member from A. See "Data change" for further contributors.
