4P22 Ch= 4P2

4P22 Ch= 4P2; Admiral brand (ID = 2448676) Radio

4P22 Ch= 4P2; Admiral brand (ID = 2448677) Radio

4P22 Ch= 4P2; Admiral brand (ID = 2448678) Radio

4P22 Ch= 4P2; Admiral brand (ID = 2448679) Radio

4P22 Ch= 4P2; Admiral brand (ID = 2448680) Radio

4P22 Ch= 4P2; Admiral brand (ID = 2448682) Radio

4P22 Ch= 4P2; Admiral brand (ID = 136185) Radio
4P22 Ch= 4P2; Admiral brand (ID = 2415431) Radio 4P22 Ch= 4P2; Admiral brand (ID = 2415432) Radio
4P22 Ch= 4P2; Admiral brand (ID = 2415433) Radio 4P22 Ch= 4P2; Admiral brand (ID = 2415434) Radio
4P22 Ch= 4P2; Admiral brand (ID = 2415435) Radio 4P22 Ch= 4P2; Admiral brand (ID = 2415436) Radio
Use red slider bar for more.
4P22 Ch= 4P2; Admiral brand (ID = 2415431) Radio

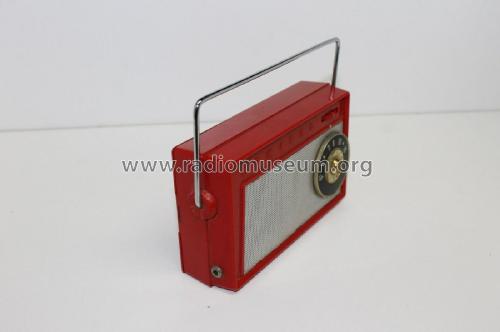

Admiral brand: 4P22 Ch= 4P2 [Radio] ID = 2415431 1400x932
Select picture or schematic to display from thumbnails on the right and click for download.
For model 4P22 Ch= 4P2, Admiral (brand) Continental Radio & Television Co.; Chicago, IL:
ebay.com #183913801961 seller smarther

Country:  United States of America (USA)
Manufacturer / Brand:  Admiral (brand) Continental Radio & Television Co.; Chicago, IL
alternative name

Continental Radio & TV
Year: 1957 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 4: 2N219 2N218 2N218 2N217 1N295 1N295
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 1 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries / AA: 4 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.75 inch = 7 cm
Power out
from Radiomuseum.org Model: 4P22 Ch= 4P2 - Admiral brand Continental
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 6 x 3.5 x 1.625 inch / 152 x 89 x 41 mm
Notes

Admiral model 4P22 is a battery operated portable AM transistorized receiver.

Price in first year of sale 90.00 $
Collectors' prices
Circuit diagram reference Beitman Radio Diagrams Vol. 18, 1958
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 374 Folder 1 dated 10-57)

Model page created by Egon Penker. See "Data change" for further contributors.
