• Country
• United States of America (USA)

• Manufacturer / Brand
• Admiral (brand) Continental Radio & Television Co.; Chicago, IL

• Year
• 1956

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 113753

• • alternative name: Continental Radio & TV

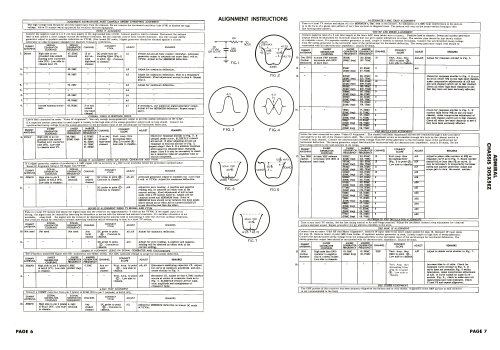

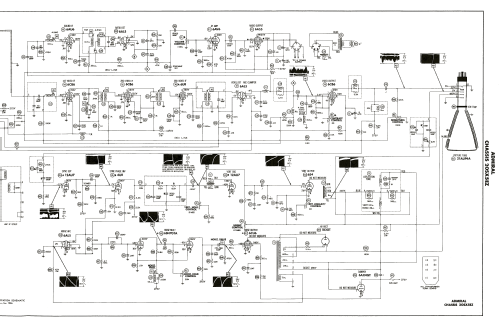

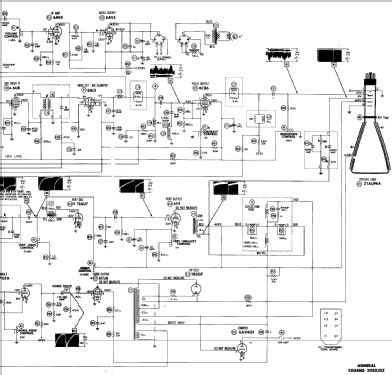

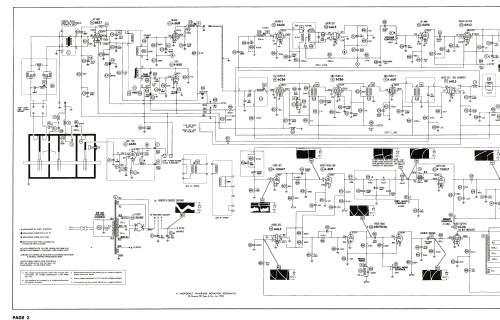

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 21

• Valves / Tubes
• 6AF4 6BZ7 6U8 6CB6 6CB6 6U8 6AL5 6CB6 6AU6 6AL5 6AV6 6AS5 12AU7 6S4 6AL5 6SN7GTA 6CU6 6AX4GT 1B3GT 5U4G 21AUP4A

• Number of Transistors

• Semiconductors
• 1N82A

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 117V= 110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: CS2306BZN Ch= 20SX5EZ - Admiral brand Continental

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• The ADMIRAL model CS2306BZN is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF.Equipped with VHF-UHFtuner 94E75-1, chassis 20SX5EZ and picture tube 21AUP4A.

• Circuit diagram reference
• Photofact Folder, Howard W. SAMS

• Mentioned in
• Photofact Folder, Howard W. SAMS (Set 311 Folder 2 Dated 3-56)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
