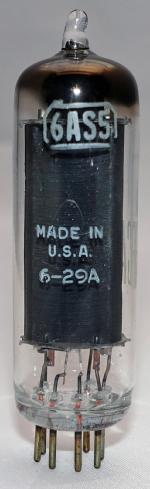

6AS5

Information - Help
ID = 4586

Country:
United States of America (USA)
Brand:
Developer: RCA (RCA Victor Co. Inc.); New York (NY)
Tube type:  Vacuum Pentode   beam power   Power/Output
Identical to 6AS5
First Source (s)
16.Feb.1948 : Electron Tube Registration List 636

Base Miniatur-7-Pin-Base B7G, USA 1940 (Codex=Zh)
Filament Vf 6.3 Volts / If 0.8 Ampere / Indirect / Parallel, (AC/DC)
Description Power beam amplifier cable of operation at relatively low plate voltage. Intended for use in the output stage of automobile and ac-operated radio receivers.
Pa < 5.5W.
Tube prices 4 Tube prices (visible for members only)
Literature Essential Characteristics, GE 1973
Taschenbuch zum Röhren-Codex 1948/49
- - Manufacturers Literature
  6AS5: Courtesy Bureau Belper (De Muiderkring, Bussum), Scan Frank Philipse
Michael Schlör

6AS5: scc
Christian Schaufelberger


6AS5: RCA Reference Book 1968
Michael Schlör


6AS5: RCA Tube Manual
Peter Hoddow


Usage in Models 5= 1948? ; 2= 1948 ; 1= 1949? ; 19= 1949 ; 1= 1950?? ; 8= 1950? ; 7= 1950 ; 5= 1951? ; 7= 1951 ; 2= 1952?? ; 1= 1952? ; 2= 1952 ; 5= 1953?? ; 39= 1953? ; 11= 1954? ; 1= 1954 ; 5= 1955?? ; 1= 1955? ; 146= 1955 ; 86= 1956? ; 4= 1956 ; 5= 1957? ; 26= 1959? ; 1= 1960? ; 2= 1962? ; 1= 1966?

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):393
