• Year
  • 1959 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 149084
    • alternative name: Continental Radio & TV

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 9
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Rec.Player+Audio.Amp+LS
  • Power type and voltage
  • Alternating Current supply (AC) / 110 - 120 Volt
  • Loudspeaker
  • 6 Loudspeakers
  • from Radiomuseum.org
  • Model: Y1092 Ch= 9H1 - Admiral brand Continental
  • Notes

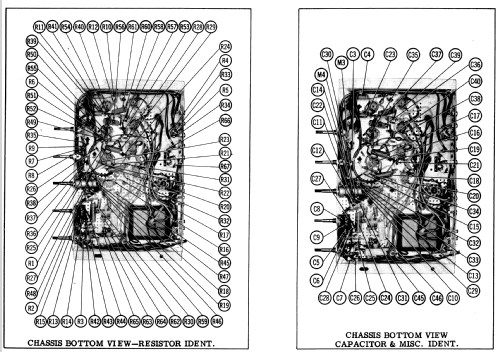

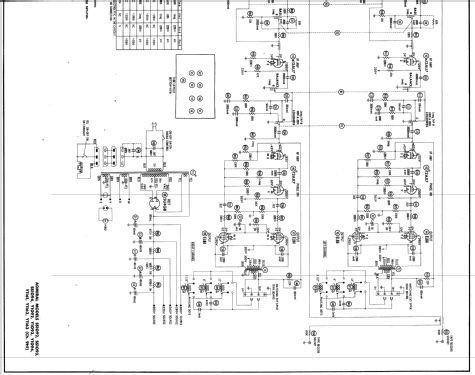

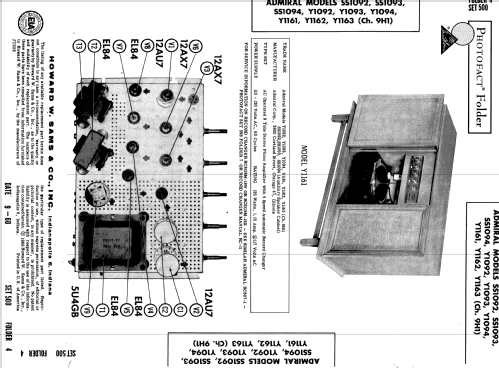

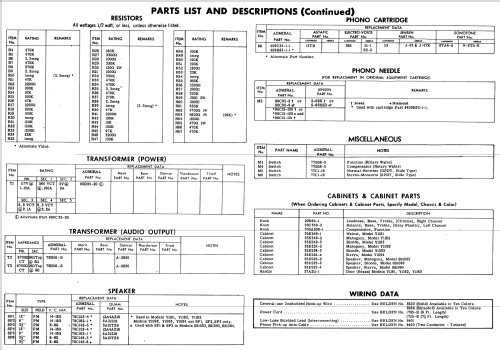

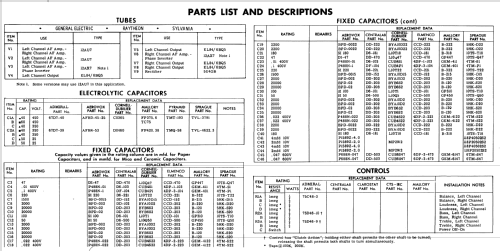

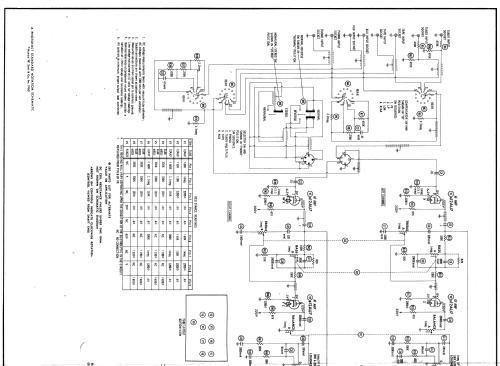

  • AC operated stereo phono amplifier with 4 speed automatic record changer. Sams photofact set 500 folder 4 date 9-60 features the Admiral models Y1092, Y1093, Y1094, Y1161, Y1162 and Y1163 as the same schematic.
  • Author
  • Model page created by Peter Hoddow. See "Data change" for further contributors.
