Dual Channel Oscilloscope OS250
Advance Electronics / Components Ltd.; Hainault, Wrexham
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Advance Electronics / Components Ltd.; Hainault, Wrexham
- Year
- 1986 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 160638

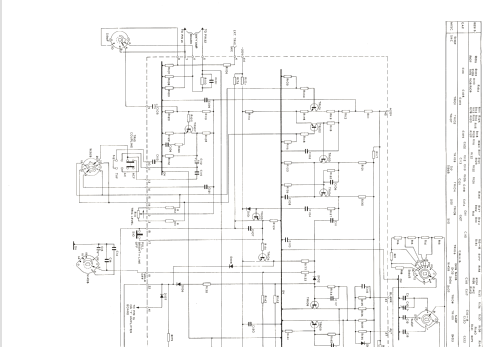

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 103; 112; 120; 206; 224; 240 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Dual Channel Oscilloscope OS250 - Advance Electronics /
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 290 x 185 x 440 mm / 11.4 x 7.3 x 17.3 inch
- Notes
- Zweikanal-Oszilloskop (identische Kanäle Y1/Y2) mit einer Bandbreite von DC-2Hz...10MHz, sichtbares Raster 10cm x 8cm, Eingangsimpedanz 1MOhm||28pF (400V/DC).
- Net weight (2.2 lb = 1 kg)
- 8.2 kg / 18 lb 1 oz (18.062 lb)
- Price in first year of sale
- 1,200.00 DM
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Peter Roggenhofer † 25.4.18. See "Data change" for further contributors.
