• Country
• Great Britain (UK)

• Manufacturer / Brand
• Advance Electronics / Components Ltd.; Hainault, Wrexham

• Year
• 1965 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 128664

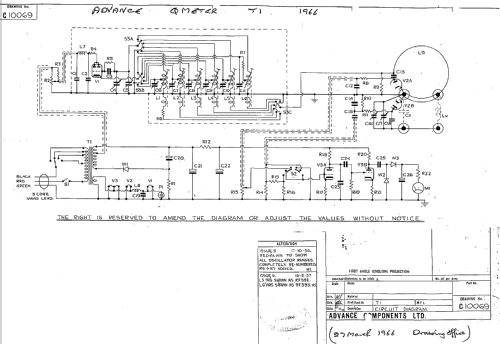

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• EAA91 ECC91 12AT7

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110-250 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Q Meter T.2.A. - Advance Electronics /

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 380 x 240 x 150 mm / 15 x 9.4 x 5.9 inch

• Notes
• Measure frequency 100 kHz to 100 MHz in six ranges. Q-ranges 10-100 and 40-400.

• Net weight (2.2 lb = 1 kg)
• 7.3 kg / 16 lb 1.3 oz (16.079 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Eero Ukkola. See "Data change" for further contributors.
