• Country
• Germany

• Manufacturer / Brand
• AEG (Radios) Allg.Elektricitäts-Ges.

• Year
• 1962/1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 24258

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECC85 ECH81 EBF89 ECL86 EM84

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220; 240 Volt

• Loudspeaker
• 3 Loudspeakers

• Power out
• 3.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

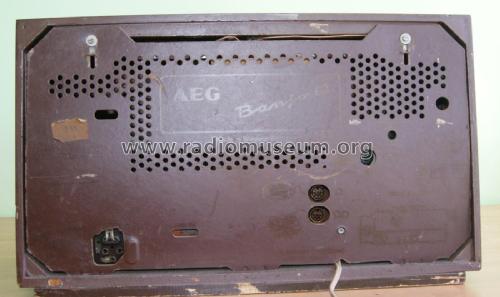

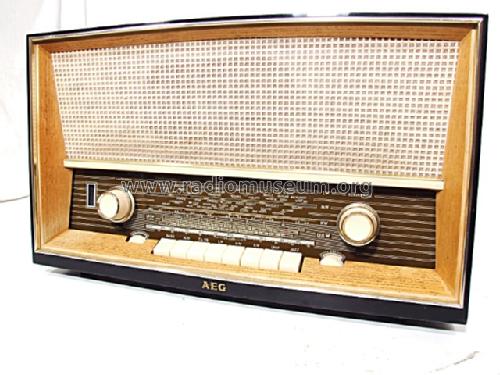

• Model: Banjo 62 [3 Lautsprecher] - AEG Radios Allg.Elektricitäts-

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 515 x 310 x 230 mm / 20.3 x 12.2 x 9.1 inch

• Notes
• Dioden: 2× OA172.

• Net weight (2.2 lb = 1 kg)
• 7.8 kg / 17 lb 2.9 oz (17.181 lb)

• Price in first year of sale
• 388.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1962/1963

• Literature/Schematics (1)
• -- Original-techn. papers.

• Other Models

• Here you find 813 models, 701 with images and 411 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from AEG (Radios) Allg.Elektricitäts-Ges.
