Berolina 2462 poliert

Berolina 2462; AEG Radios Allg. (ID = 326423) Radio
Use red slider bar for more.
Berolina 2462; AEG Radios Allg. (ID = 326423) Radio

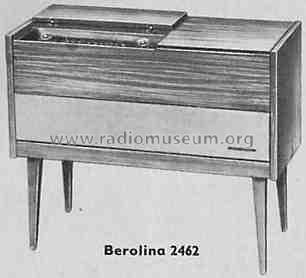

AEG Radios Allg.: Berolina 2462 [Radio] ID = 326423 306x278
Select picture or schematic to display from thumbnails on the right and click for download.
For model Berolina 2462 poliert, AEG (Radios) Allg.Elektricitäts-Ges.

Country:  Germany
Manufacturer / Brand:  AEG (Radios) Allg.Elektricitäts-Ges.
Year: 1963/1964 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EBF89 ECL86 EM84 ECL86
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 110; 125; 220; 240 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Berolina 2462 [poliert] - AEG Radios Allg.Elektricitäts-
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 900 x 720 x 365 mm / 35.4 x 28.3 x 14.4 inch
Notes Rundfunk-Chassis = Allegro 2460. Baugleich mit Telefunken Berolina 2462.
Net weight (2.2 lb = 1 kg) 28 kg / 61 lb 10.8 oz (61.674 lb)
Price in first year of sale 798.00 DM
External source of data Erb
Source of data Handbuch VDRG 1963/1964
