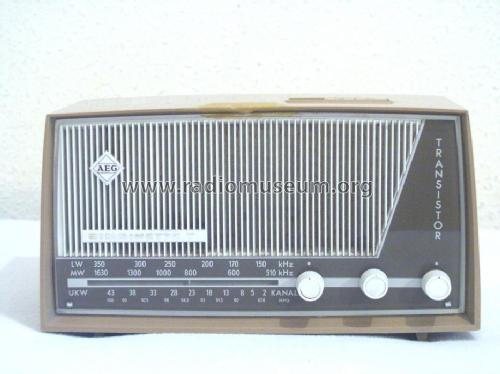

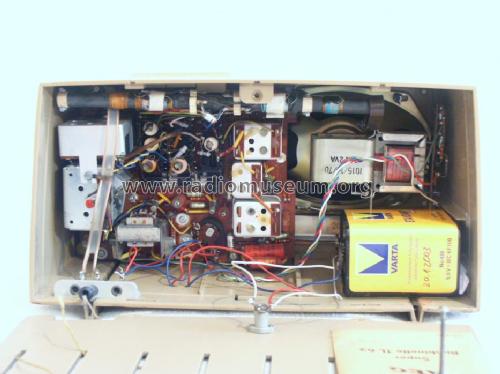

Bimbinette TL62; AEG Radios Allg. (ID = 1572705) Radio Bimbinette TL62; AEG Radios Allg. (ID = 24996) Radio
Bimbinette TL62; AEG Radios Allg. (ID = 24997) Radio Bimbinette TL62; AEG Radios Allg. (ID = 1290892) Radio
Bimbinette TL62; AEG Radios Allg. (ID = 1290893) Radio Bimbinette TL62; AEG Radios Allg. (ID = 1290894) Radio
Bimbinette TL62; AEG Radios Allg. (ID = 1290895) Radio Bimbinette TL62; AEG Radios Allg. (ID = 1572706) Radio
Use red slider bar for more.
Bimbinette TL62; AEG Radios Allg. (ID = 1572705) Radio
AEG Radios Allg.: Bimbinette TL62 [Radio] ID = 1572705 933x692
Select picture or schematic to display from thumbnails on the right and click for download.
For model Bimbinette TL62, AEG (Radios) Allg.Elektricitäts-Ges.

Country:  Germany
Manufacturer / Brand:  AEG (Radios) Allg.Elektricitäts-Ges.
Year: 1961/1962 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9:
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.6 W (unknown quality)
from Radiomuseum.org Model: Bimbinette TL62 - AEG Radios Allg.Elektricitäts-
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 300 x 165 x 140 mm / 11.8 x 6.5 x 5.5 inch
Notes Transistoren: 2× OC615, 3× AF105, OC602, OC604, AC105 or AC106, AC105 or AC106; Dioden: 2× OA172, OA174, OA174.
Stromversorgung: 1 Batterie 9 V (Energieblock) oder 2 Batterien je 4,5 V oder 6 Monozellen in als Zubehör lieferbarem Batteriebehälter.
Net weight (2.2 lb = 1 kg) 1.8 kg / 3 lb 15.4 oz (3.965 lb)
Price in first year of sale 249.00 DM
Collectors' prices
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1961/62
