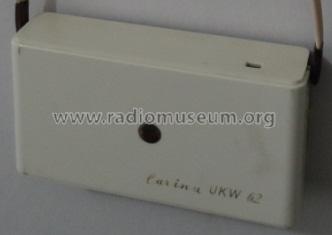

Carina Transistor UKW 62

Carina Transistor UKW 62; AEG Radios Allg. (ID = 892165) Radio
Carina Transistor UKW 62; AEG Radios Allg. (ID = 880685) Radio Carina Transistor UKW 62; AEG Radios Allg. (ID = 880686) Radio
Carina Transistor UKW 62; AEG Radios Allg. (ID = 1350630) Radio Carina Transistor UKW 62; AEG Radios Allg. (ID = 1351275) Radio
Carina Transistor UKW 62; AEG Radios Allg. (ID = 1351276) Radio Carina Transistor UKW 62; AEG Radios Allg. (ID = 1351277) Radio
Carina Transistor UKW 62; AEG Radios Allg. (ID = 1351279) Radio Carina Transistor UKW 62; AEG Radios Allg. (ID = 1351280) Radio
Carina Transistor UKW 62; AEG Radios Allg. (ID = 1351281) Radio Carina Transistor UKW 62; AEG Radios Allg. (ID = 1351282) Radio
Use red slider bar for more.
Carina Transistor UKW 62; AEG Radios Allg. (ID = 880685) Radio
AEG Radios Allg.: Carina Transistor UKW 62 [Radio] ID = 880685 753x403
Select picture or schematic to display from thumbnails on the right and click for download.
For model Carina Transistor UKW 62, AEG (Radios) Allg.Elektricitäts-Ges.:
War früher einmal in meiner Sammlung

Country:  Germany
Manufacturer / Brand:  AEG (Radios) Allg.Elektricitäts-Ges.
Year: 1961/1962 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: OC615 AF105 AF105 AF105 OC602 OC602 OC604spez OC604spez OA174 OA172 OA172
Main principle Super-Heterodyne (Super in general); ZF/IF 460/6750 kHz; 3 AF stage(s)
Tuned circuits 5 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
Power out 0.18 W (unknown quality)
from Radiomuseum.org Model: Carina Transistor UKW 62 - AEG Radios Allg.Elektricitäts-
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 175 x 92 x 43 mm / 6.9 x 3.6 x 1.7 inch
Notes

Der Carina UKW 62 ist ein Taschenempfänger mit einem Ohrhöreranschluß.

Modell ist elektrisch baugleich mit Telefunken UKW-Partner 3081 (ab Nr. 943001)

Net weight (2.2 lb = 1 kg) 0.7 kg / 1 lb 8.7 oz (1.542 lb)
Price in first year of sale 198.00 DM
Collectors' prices
Source of data HdB d.Rdf-& Ferns-GrH 1961/62 / Radiokatalog Band 1, Ernst Erb
