Clock Radio MRC 4142

Clock Radio MRC 4142; AEG Radios Allg. (ID = 2452121) Radio Clock Radio MRC 4142; AEG Radios Allg. (ID = 2452122) Radio
Clock Radio MRC 4142; AEG Radios Allg. (ID = 2452123) Radio Clock Radio MRC 4142; AEG Radios Allg. (ID = 2452124) Radio

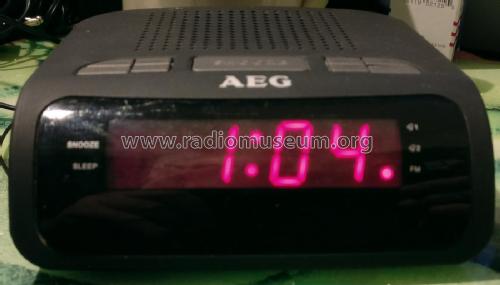

Clock Radio MRC 4142; AEG Radios Allg. (ID = 2452125) Radio Clock Radio MRC 4142; AEG Radios Allg. (ID = 2452126) Radio
Clock Radio MRC 4142; AEG Radios Allg. (ID = 2452127) Radio Clock Radio MRC 4142; AEG Radios Allg. (ID = 2452128) Radio
Use red slider bar for more.
Clock Radio MRC 4142; AEG Radios Allg. (ID = 2452121) Radio
AEG Radios Allg.: Clock Radio MRC 4142 [Radio] ID = 2452121 1400x1115
Select picture or schematic to display from thumbnails on the right and click for download.
For model Clock Radio MRC 4142, AEG (Radios) Allg.Elektricitäts-Ges.

Country:  Germany
Manufacturer / Brand:  AEG (Radios) Allg.Elektricitäts-Ges.
Year: 2010 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle PLL, Phase-locked loop
Wave bands FM Broadcast Band Only
Details
Power type and voltage Powered by external power supply or a main unit. / DC 5 / clock back-up AAA: 2 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Clock Radio MRC 4142 - AEG Radios Allg.Elektricitäts-
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD) 115 x 40 x 120 mm / 4.5 x 1.6 x 4.7 inch
Notes

Clock Radio, preset for 10 stations. Needs external power supply, output DC 5V 250mA.

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
