• Country
• Germany

• Manufacturer / Brand
• AEG (Radios) Allg.Elektricitäts-Ges.

• Year
• 1930–1932

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 47

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• RES044s RE084s RE034s RE134S or RES164ds

• Main principle
• TRF with regeneration; 1 Special; 2 AF stage(s)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Direct Current supply (DC) / 110-220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

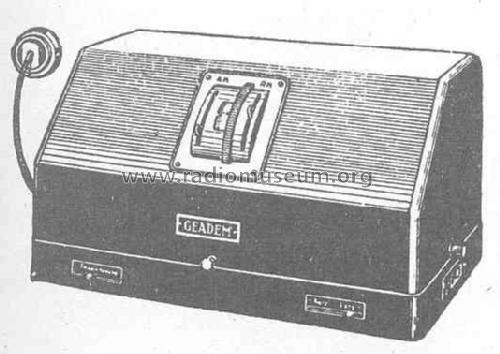

• Model: Geadem 33ag - AEG Radios Allg.Elektricitäts-

• Shape
• Tablemodel, slant panel.

• Notes

• Trommelskala [501, 569]

  Preis ohne Röhren, zusätzlich Röhrensatz:

  • RES044s, RE084s, RE034s, Vorschaltlampe, RE134S Preis: 43,- RM
  • RES044s, RE084s, RE034s, Vorschaltlampe, RES164ds Preis: 51,50 RM

  Umstellung der Netzspannung durch Wechsel der Vorschaltlampe.
  Mögliche Spannungen: 110, 120, 130, 140, 150, 160, 210 oder 220 Volt.

• Price in first year of sale
• 332.00 RM +

• Source of data
• Katalog Radio-Zentrale Prohaska 1930/31 (dick) / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange + FS-Bestückungstabellen

• Mentioned in
• Katalog Radio-Zentrale Prohaska 1931/32
