Geadem 33bg

Geadem 33bg; AEG Radios Allg. (ID = 5960) Radio
Geadem 33bg; AEG Radios Allg. (ID = 377973) Radio
Use red slider bar for more.
Geadem 33bg; AEG Radios Allg. (ID = 377973) Radio

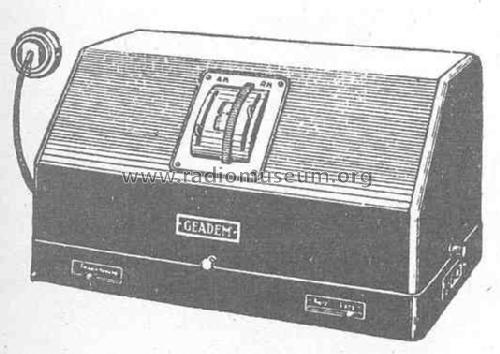

AEG Radios Allg.: Geadem 33bg [Radio] ID = 377973 534x379
Select picture or schematic to display from thumbnails on the right and click for download.
For model Geadem 33bg, AEG (Radios) Allg.Elektricitäts-Ges.:
Radio-Zentrale Alex.V.Prohaska GmbH Berlin 1030/31

Country:  Germany
Manufacturer / Brand:  AEG (Radios) Allg.Elektricitäts-Ges.
Year: 1930–1932 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: RES044s RE084s RE034s RE134 RE134
Main principle TRF with regeneration; 1 Special; 2 AF stage(s)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Direct Current supply (DC) / 110-230 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Geadem 33bg - AEG Radios Allg.Elektricitäts-
Material Metal case
Shape Tablemodel, slant panel.
Dimensions (WHD) 405 x 218 x 250 mm / 15.9 x 8.6 x 9.8 inch
Notes 2 Rö parallel [501, 569]; Pultförmig 2 Röhren parallel [501, 569]; Pultförmig
Price in first year of sale 332.00 RM +
Source of data Katalog Radio-Zentrale Prohaska 1930/31 (dick) / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange + FS-Bestückungstabellen
Mentioned in Katalog Radio-Zentrale Prohaska 1931/32
