Super-Geadem 34GL = 34GS; AEG Radios Allg. (ID = 221956) Radio

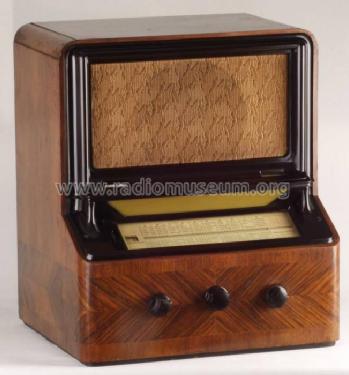

AEG Radios Allg.: Super-Geadem 34GL = 34GS [Radio] ID = 221956 652x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super-Geadem 34GL = 34GS, AEG (Radios) Allg.Elektricitäts-Ges.

Country:  Germany
Manufacturer / Brand:  AEG (Radios) Allg.Elektricitäts-Ges.
Year: 1934/1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: RENS1834 RENS1834 RENS1854 BL2 Eisen-Wasserstoff-W
Main principle Superhet with RF-stage; ZF/IF 132 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Direct Current supply (DC) / 110-220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Super-Geadem 34GL = 34GS - AEG Radios Allg.Elektricitäts-
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 365 x 442 x 520 mm / 14.4 x 17.4 x 20.5 inch
Notes Feldst.Anz.
Price in first year of sale 309.00 RM
Source of data Radio-Katalog Fricke 1934/35 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Mentioned in AEG Hilfsbuch für den Funkhändler
Literature/Schematics (1) Radio-Katalog, Mix & Genest Hansawerke, 1935
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
