Geadux 34GS (34GLK)

Geadux 34GS ; AEG Radios Allg. (ID = 5968) Radio

Geadux 34GS ; AEG Radios Allg. (ID = 9987) Radio
Geadux 34GS ; AEG Radios Allg. (ID = 44) Radio Geadux 34GS ; AEG Radios Allg. (ID = 477048) Radio
Geadux 34GS ; AEG Radios Allg. (ID = 477049) Radio Geadux 34GS ; AEG Radios Allg. (ID = 477050) Radio
Geadux 34GS ; AEG Radios Allg. (ID = 1579778) Radio
Use red slider bar for more.
Geadux 34GS ; AEG Radios Allg. (ID = 44) Radio
AEG Radios Allg.: Geadux 34GS [Radio] ID = 44 437x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model Geadux 34GS (34GLK), AEG (Radios) Allg.Elektricitäts-Ges.

Country:  Germany
Manufacturer / Brand:  AEG (Radios) Allg.Elektricitäts-Ges.
Year: 1934/1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 2: RENS1884 RENS1823d
Main principle TRF with regeneration; 1 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details

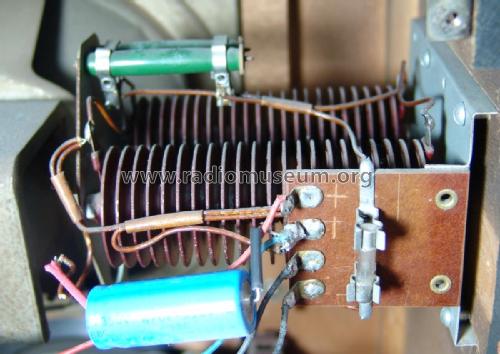

Power type and voltage Direct Current supply (DC) / 110; 130; 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 17.5 cm = 6.9 inch
Power out
from Radiomuseum.org Model: Geadux 34GS - AEG Radios Allg.Elektricitäts-
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 335 x 385 x 170 mm / 13.2 x 15.2 x 6.7 inch
Notes Schenk=BCH1-1834-1823d!
Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)
Price in first year of sale 167.00 RM
Source of data Radio-Katalog Fricke, Radio Groß-Vertrieb, 1934/35 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Mentioned in AEG Hilfsbuch für den Funkhändler

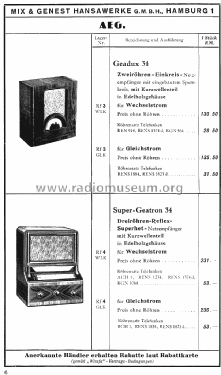

Literature/Schematics (1) Radio-Katalog, Mix & Genest Hansawerke, 1935
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
