Geakord G

Geakord G; AEG Radios Allg. (ID = 707613) Speaker-P Geakord G; AEG Radios Allg. (ID = 1775131) Speaker-P
Use red slider bar for more.
Geakord G; AEG Radios Allg. (ID = 707613) Speaker-P

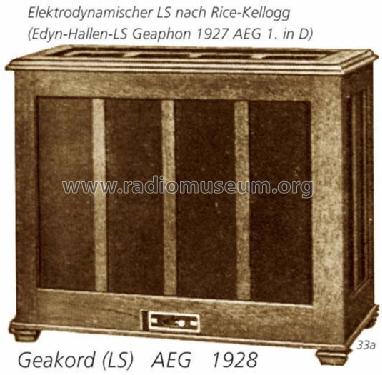

AEG Radios Allg.: Geakord G [Speaker-P] ID = 707613 535x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model Geakord G, AEG (Radios) Allg.Elektricitäts-Ges.:
Bild zum gleich aussehenden Modell automatisch kopiert statt wie bisher verknüpft (05.Jan.2010 EE).

Country:  Germany
Manufacturer / Brand:  AEG (Radios) Allg.Elektricitäts-Ges.
Year: 1928–1931 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage Direct Current supply (DC) / 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Geakord G - AEG Radios Allg.Elektricitäts-
Material Wooden case
Notes Edyn-LS, Original Rice-Kellogg
Price in first year of sale 250.00 RM
Source of data Radio-Diehr, Berlin, 1928/1929 / Radiokatalog Band 1, Ernst Erb
Mentioned in AEG Hilfsbuch für den Funkhändler
Literature/Schematics (1) Die Sendung (Nr. 35, 1929)
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
