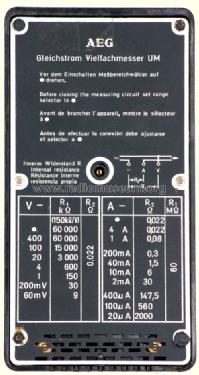

Gleichstrom Vielfachmesser UM

AEG (Radios) Allg.Elektricitäts-Ges.

  • Year
  • 1960 ??
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 198320

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Bakelite case
  • from Radiomuseum.org
  • Model: Gleichstrom Vielfachmesser UM - AEG Radios Allg.Elektricitäts-
  • Dimensions (WHD)
  • 97 x 60 x 184 mm / 3.8 x 2.4 x 7.2 inch
  • Notes
  • Gleichstrom-Messgerät mit Spiegelskala und Zeigernullpunkt im ersten Skalendrittel, um negative Spannungen ohne Umpolen der Messleitung messen zu können. Gerät verfügt über 7 Messbereiche von 60 mV - 400 V und 9 Messbereiche von 20 uA - 4 A. Spannbandlagerung, dadurch hoher Innenwiderstand von 150 kOhm/Volt.
  • Net weight (2.2 lb = 1 kg)
  • 0.980 kg / 2 lb 2.5 oz (2.159 lb)
  • Author
  • Model page created by Michael Wilhammer. See "Data change" for further contributors.
