• Country
• Germany

• Manufacturer / Brand
• AEG (Radios) Allg.Elektricitäts-Ges.

• Year
• 1939

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 199325

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• Solar- and/or muscle driven, also addl. power jack possible

• Loudspeaker
• - - No sound reproduction output.

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Taschen-Isolationsmesser mit Kurbelinduktor 500 V - AEG Radios Allg.Elektricitäts-

• Dimensions (WHD)
• 105 x 65 x 160 mm / 4.1 x 2.6 x 6.3 inch

• Notes

• Isolationsmessgerät; Bereich 0 bis 50MOhm; Prüfspannung 500V= erzeugt mit Kurbelinduktor; Anzeige: Kreuzspulinstrument

  Siehe auch die 250 V- Ausführung dieses Gerätes.

• Net weight (2.2 lb = 1 kg)
• 1.5 kg / 3 lb 4.9 oz (3.304 lb)

• Price in first year of sale
• 135.00 RM

• Mentioned in

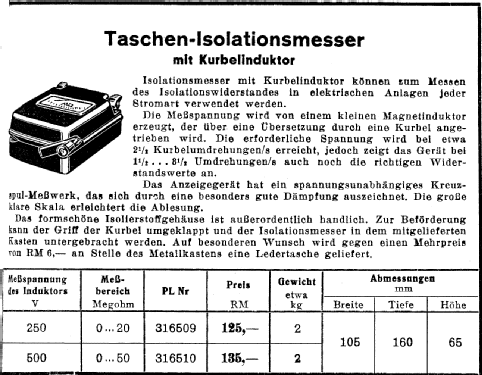

• AEG-Preisliste 1939

• Author
• Model page created by Wolfgang Feige. See "Data change" for further contributors.
