Lichtblitz-Stroboskop LBS141 - E-Nr. 2306-71142
AEG (Radios) Allg.Elektricitäts-Ges.
- Country
- Germany
- Manufacturer / Brand
- AEG (Radios) Allg.Elektricitäts-Ges.
- Year
- 1962 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 200090

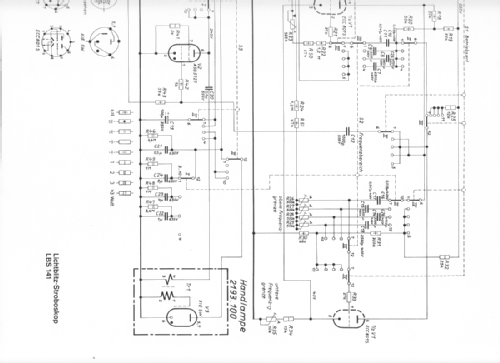

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 2
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Lichtblitz-Stroboskop LBS141 - E-Nr. 2306-71142 - AEG Radios Allg.Elektricitäts-
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 280 x 210 x 160 mm / 11 x 8.3 x 6.3 inch
- Notes
Stroboskop zur Messung von Drehzahlen, etc. Messbereich 3 Hz bis 18000 Hz.
Interne und externe Ansteuerung.
Eichung über 100Hz (Zungenfrequenzmesser).
Stroboskop-Kopf fest mit dem Gerät verbunden.
Halterung für Kopf auf der Geräterückseite.
Leistungsaufnahme 50 VA.
- Net weight (2.2 lb = 1 kg)
- 4.5 kg / 9 lb 14.6 oz (9.912 lb)
- Source of data
- - - Data from my own collection
- Author
- Model page created by Thomas Jennen. See "Data change" for further contributors.
