Magnetophon M23 ohne Endstufe

Magnetophon M23; AEG Radios Allg. (ID = 326110) R-Player
Use red slider bar for more.
Magnetophon M23; AEG Radios Allg. (ID = 326110) R-Player

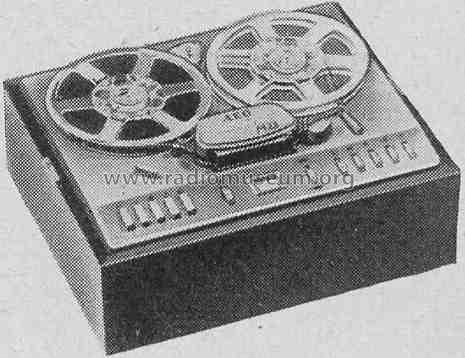

AEG Radios Allg.: Magnetophon M23 [R-Player] ID = 326110 465x358
Select picture or schematic to display from thumbnails on the right and click for download.
For model Magnetophon M23 ohne Endstufe, AEG (Radios) Allg.Elektricitäts-Ges.

Country:  Germany
Manufacturer / Brand:  AEG (Radios) Allg.Elektricitäts-Ges.
Year: 1959/1960 Category: Sound/Video Recorder and/or Player
Valves / Tubes 9: ECC81 ECC81 ECC81 ECC81 ECC81 ECC81 ECC81 ECC81 EC92
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110-237 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Magnetophon M23 [ohne Endstufe] - AEG Radios Allg.Elektricitäts-
Shape Chassis only or for «building in»
Dimensions (WHD) 530 x 270 x 530 mm / 20.9 x 10.6 x 20.9 inch
Notes Auswechselbarer Kopfträger für Vollspur, Zweispur oder Vierspur; 9,5/19 cm/s. Spulen-Ø 22 cm.
Net weight (2.2 lb = 1 kg) 30 kg / 66 lb 1.3 oz (66.079 lb)
Price in first year of sale 1'390.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1959/60
