NAD (NAD 2)

NAD ; AEG Radios Allg. (ID = 76796) Power-S
Use red slider bar for more.
NAD ; AEG Radios Allg. (ID = 76796) Power-S

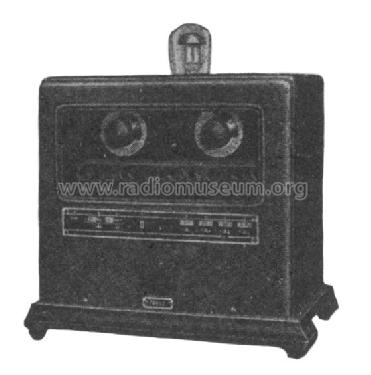

AEG Radios Allg.: NAD [Power-S] ID = 76796 559x565
Select picture or schematic to display from thumbnails on the right and click for download.
For model NAD (NAD 2), AEG (Radios) Allg.Elektricitäts-Ges.

Country:  Germany
Manufacturer / Brand:  AEG (Radios) Allg.Elektricitäts-Ges.
Year: 1926–1929 Category: Power supply/conditioner or battery or charger
Valves / Tubes 2: G132 G132
Details Power: B-Battery Eliminator
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: NAD - AEG Radios Allg.Elektricitäts-
Material TUBES VISIBLE, material not known.
Shape Tablemodel, with any shape - general.
Notes Netzanode mit 2 Glimmlicht-Gleichrichterröhren AEG-Raytheon G132 (entsprechend RGN1500). Bringt 4 x Anodenspannung und 2 regelbare Gittervorspannungen.
Price in first year of sale 158.00 RM !
Source of data Radio-Diehr, Berlin, 1928/1929 / Radiokatalog Band 1, Ernst Erb
