Super 218 W

Super 218 W; AEG Radios Allg. (ID = 1618672) Radio

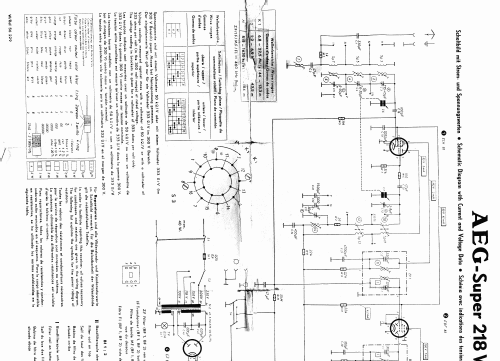

Super 218 W; AEG Radios Allg. (ID = 1618673) Radio

Super 218 W; AEG Radios Allg. (ID = 1618674) Radio
Super 218 W; AEG Radios Allg. (ID = 1618191) Radio
Use red slider bar for more.
Super 218 W; AEG Radios Allg. (ID = 1618191) Radio
AEG Radios Allg.: Super 218 W [Radio] ID = 1618191 933x1292
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super 218 W, AEG (Radios) Allg.Elektricitäts-Ges.

Country:  Germany
Manufacturer / Brand:  AEG (Radios) Allg.Elektricitäts-Ges.
Year: 1958 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH81 EBF89 ECL82 EZ80
Main principle Superheterodyne (common); ZF/IF 460 kHz
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 100; 118; 150; 200; 230 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Super 218 W - AEG Radios Allg.Elektricitäts-
Notes

SW1:  6.8 - 22.5 MHz ( 44 - 13.3 m ).
SW2: 2.2 - 6.9 MHz  ( 136 - 43.5 m ).
MW: 515 - 1630 kHz  (583 - 184 m).

Model page created by Daniel Rosha. See "Data change" for further contributors.
