Tambour-Stereo 2464 poliert

Tambour-Stereo 2464; AEG Radios Allg. (ID = 279544) Radio

Tambour-Stereo 2464; AEG Radios Allg. (ID = 279545) Radio

Tambour-Stereo 2464; AEG Radios Allg. (ID = 869767) Radio
Tambour-Stereo 2464; AEG Radios Allg. (ID = 414427) Radio Tambour-Stereo 2464; AEG Radios Allg. (ID = 414430) Radio
Tambour-Stereo 2464; AEG Radios Allg. (ID = 414428) Radio Tambour-Stereo 2464; AEG Radios Allg. (ID = 326416) Radio
Use red slider bar for more.

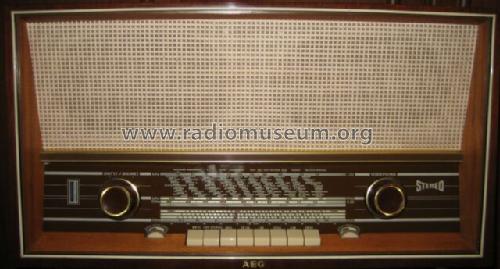

Tambour-Stereo 2464; AEG Radios Allg. (ID = 414427) Radio
AEG Radios Allg.: Tambour-Stereo 2464 [Radio] ID = 414427 640x345
Select picture or schematic to display from thumbnails on the right and click for download.
For model Tambour-Stereo 2464 poliert, AEG (Radios) Allg.Elektricitäts-Ges.:
D_Tambour_2464

Country:  Germany
Manufacturer / Brand:  AEG (Radios) Allg.Elektricitäts-Ges.
Year: 1963–1965 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EBF89 ECL86 EM84 ECL86
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220; 240 Volt
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: Tambour-Stereo 2464 [poliert] - AEG Radios Allg.Elektricitäts-
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 630 x 360 x 260 mm / 24.8 x 14.2 x 10.2 inch
Notes Stereo-NF-Verstärker mit 2 Endstufen je 3,5 W.
Net weight (2.2 lb = 1 kg) 11.4 kg / 25 lb 1.8 oz (25.11 lb)
Price in first year of sale 479.00 DM
External source of data Erb
Source of data Handbuch VDRG 1963/1964
