For model Universalmesser UM, AEG (Radios) Allg.Elektricitäts-Ges.:
Thanks for Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Germany
Manufacturer / Brand:  AEG (Radios) Allg.Elektricitäts-Ges.
Year: 1960 ?? Category: Service- or Lab Equipment
Wave bands - without
Details

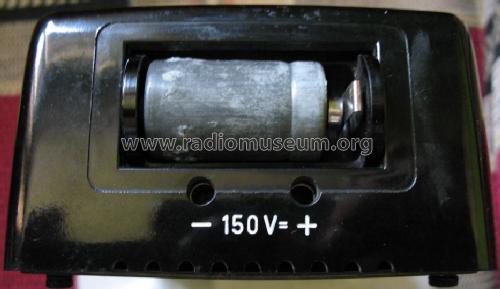

Power type and voltage Batteries / addl. power jack / 1 × 1,5 / 150 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Universalmesser UM - AEG Radios Allg.Elektricitäts-
Material Bakelite case
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 96 x 185 x 55 mm / 3.8 x 7.3 x 2.2 inch

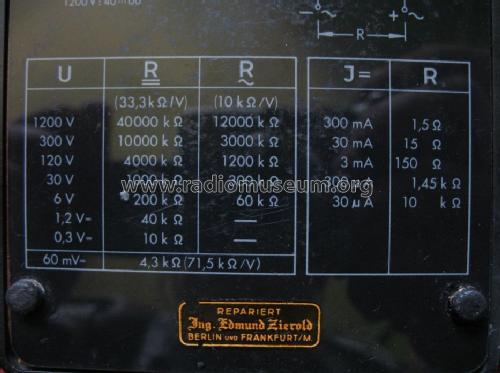

Notes AC: 1,2- 1,2 kV
DC: 0,3- 300 V;
30 µA- 300 mA.
Ohm: 0-200 MOhm. Ext. power jack: DC 150 V (135-175 V).

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
