Rural 4 KSR/4

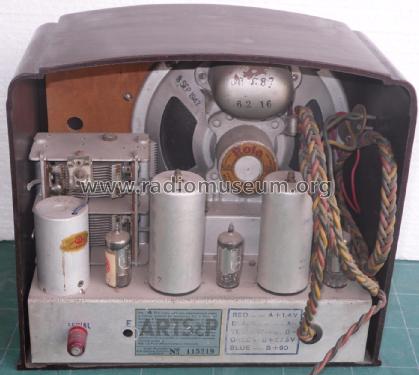

Rural 4 KSR/4; Aegis Pty. Ltd; (ID = 2070861) Radio
Use red slider bar for more.
Rural 4 KSR/4; Aegis Pty. Ltd; (ID = 2070861) Radio
Aegis Pty. Ltd;: Rural 4 KSR/4 [Radio] ID = 2070861 700x343
Select picture or schematic to display from thumbnails on the right and click for download.
For model Rural 4 KSR/4, Aegis Pty. Ltd; Melbourne, Victoria:
Aegis Rural 4 from Radio and Electronics Digest of Circuits (Australian Edition) P25.

Country:  Australia
Manufacturer / Brand:  Aegis Pty. Ltd; Melbourne, Victoria
Year: 1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1R5 1T4 1S5 3S4
Main principle Super-Heterodyne (Super in general); 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 90 & 67.5 & 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
Power out
from Radiomuseum.org Model: Rural 4 KSR/4 - Aegis Pty. Ltd; Melbourne,
Material Bakelite case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Notes This radio was supplied as a kit set. The price below did not include valves or batteries. Full assembly instructions were published in "The Australasian Radio World" Oct 1947. The price below does not include valves or batteries.
Price in first year of sale 14.00 Aus£
Literature/Schematics (1) The Australasian Radio World Oct 1947

Model page created by Stuart Irwin. See "Data change" for further contributors.
