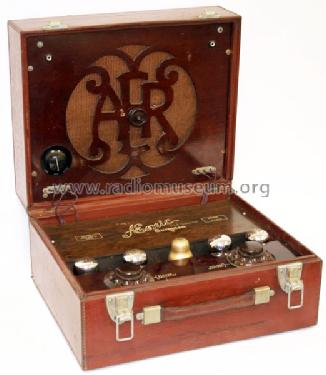

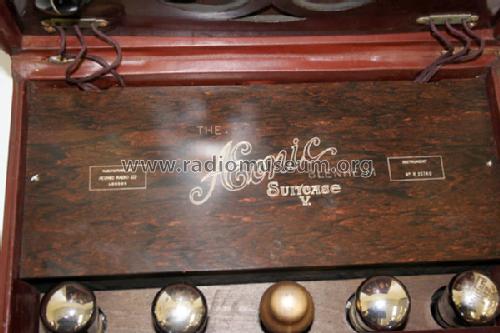

The "Blenheim" Suitcase V (5) triode output

AER (brand), Aeonic Radio Ltd.; London

  • Year
  • 1929 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 107463

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • TRF (Tuned-Radio-Frequency but use of regeneration unknown)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Storage and/or dry batteries / 2 & 9 & 120 Volt
  • Loudspeaker
  • Magnetic loudspeaker (reed) generic. / Ø 30 cm = 11.8 inch
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: The "Blenheim" Suitcase V [triode output] - AER brand, Aeonic Radio Ltd.;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 390 x 220 x 320 mm / 15.4 x 8.7 x 12.6 inch
  • Notes
  • No evidence for "Blenheim" yet.

  • Net weight (2.2 lb = 1 kg)
  • 7 kg / 15 lb 6.7 oz (15.419 lb)
  • Author
  • Model page created by Valery Gromov. See "Data change" for further contributors.

 Collections | Museums | Literature

Collections

The model The "Blenheim" Suitcase is part of the collections of the following members.
