Transistor-6 TR180?
Use red slider bar for more.

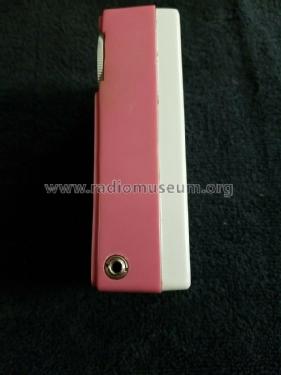

Afco Electronics,: Transistor-6 TR180? [Radio] ID = 2623709 1200x1600
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1960 ?? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | 6: |
|---|
| Main principle | Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s) |
|---|---|
| Tuned circuits | 5 AM circuit(s) |
| Wave bands | Broadcast only (MW). |
| Details | |
| Power type and voltage | Dry Batteries / 1 x 9 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | 0.15 W (unknown quality) |
| from Radiomuseum.org | Model: Transistor-6 TR180? - Afco Electronics, Oakland, CA |
| Material | Plastics (no bakelite or catalin) |
| Shape | Very small Portable or Pocket-Set (Handheld) < 8 inch. |
| Notes | Similar outside and inside to the model TR-180. Made in Japan |
Model page created by Aldo Andreani. See "Data change" for further contributors.
