- Country
- Sweden
- Manufacturer / Brand
- AGA and Aga-Baltic Radio AB; Sweden
- Year
- 1953
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 209206
-
- alternative name: AGA-Baltic Radio AB; Stockholm

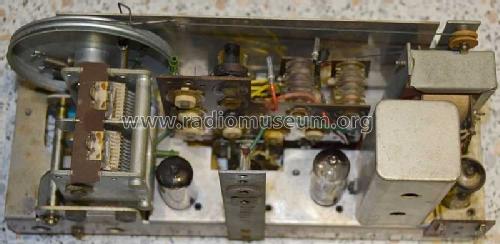

Mit neuen Kondensatoren
Röhren-, und Abgleichtabelle
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 463 kHz
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Storage and/or dry batteries / 3x 1,5 & 90 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: 2440 - AGA and Aga-Baltic Radio AB;
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 280 x 230 x 110 mm / 11 x 9.1 x 4.3 inch
- Mentioned in

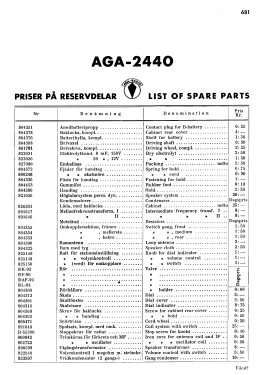

- - - Manufacturers Literature (AGA-Radio service documentation 1953-54)
- Author
- Model page created by Timo Rantasaari. See "Data change" for further contributors.
