532

AGA and Aga-Baltic Radio AB; Sweden

Data
Forum
Pictures
Collections

  • Year
  • 1944–1946
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 18091
    • alternative name: AGA-Baltic Radio AB; Stockholm

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 463 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • AC/DC-set / 110; 127; 150; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch
  • Power out
  • 3 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 532 - AGA and Aga-Baltic Radio AB;
  • Dimensions (WHD)
  • 334 x 242 x 184 mm / 13.1 x 9.5 x 7.2 inch
  • Net weight (2.2 lb = 1 kg)
  • 7.5 kg / 16 lb 8.3 oz (16.52 lb)
  • Price in first year of sale
  • 385.00 SFR
  • External source of data
  • E. Erb 3-907007-36-0
  • Circuit diagram reference
  • Die «Thali Schemasammlung» führt das Modell.
  • Mentioned in

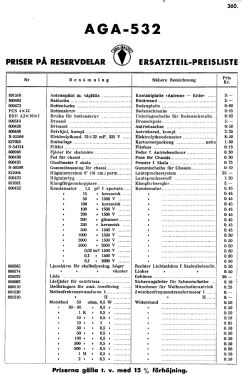

  • AGA-Baltic service booklet from 1944-45
  • Picture reference
  • Das Modell ist im «Radiokatalog» (Erb) abgebildet.
