- Country
- Sweden
- Manufacturer / Brand
- AGA and Aga-Baltic Radio AB; Sweden
- Year
- 1944
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 94633
-
- alternative name: AGA-Baltic Radio AB; Stockholm

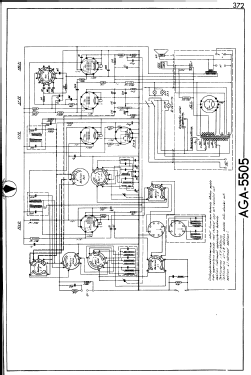

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 463 kHz
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 25 cm = 9.8 inch
- from Radiomuseum.org
- Model: 5505 - AGA and Aga-Baltic Radio AB;
- Literature/Schematics (1)
- -- Original-techn. papers. (AGA-Baltic service booklet from 1944-45)
- Author
- Model page created by Jörgen Svensson. See "Data change" for further contributors.
