Mignon 6 Transistor

Mignon 6 Transistor ; AGA and Aga-Baltic (ID = 1139232) Radio Mignon 6 Transistor ; AGA and Aga-Baltic (ID = 1139233) Radio

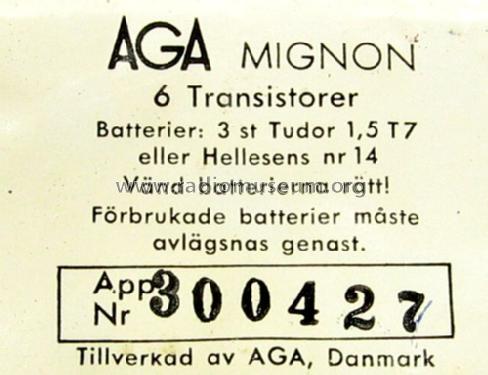

Mignon 6 Transistor ; AGA and Aga-Baltic (ID = 1139235) Radio Mignon 6 Transistor ; AGA and Aga-Baltic (ID = 1139236) Radio
Mignon 6 Transistor ; AGA and Aga-Baltic (ID = 1139238) Radio Mignon 6 Transistor ; AGA and Aga-Baltic (ID = 1139248) Radio
Use red slider bar for more.
Mignon 6 Transistor ; AGA and Aga-Baltic (ID = 1139232) Radio
AGA and Aga-Baltic: Mignon 6 Transistor [Radio] ID = 1139232 500x607
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mignon 6 Transistor, AGA and Aga-Baltic Radio AB; Sweden

Country:  Sweden
Manufacturer / Brand:  AGA and Aga-Baltic Radio AB; Sweden
alternative name

AGA-Baltic Radio AB; Stockholm
Year: 1961 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: 2S49 2S52 2S53 2S54 2S56 2S56
Main principle Superheterodyne (common)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 3 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
Power out
from Radiomuseum.org Model: Mignon 6 Transistor - AGA and Aga-Baltic Radio AB;
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 60 x 80 x 24 mm / 2.4 x 3.1 x 0.9 inch
Net weight (2.2 lb = 1 kg) 0.145 kg / 0 lb 5.1 oz (0.319 lb)
Price in first year of sale 9'900.00 FIM

Model page created by Jouko Laukkanen. See "Data change" for further contributors.
