2S56

Information - Help
ID = 37797

Country:
Japan
Brand: Toshiba Corporation; Tokyo
Tube type:  Transistor   Power/Output
Identical to 2S56
Similar Tubes
Normally replaceable-slightly different:
  2N407 ; 2N408 ; 2SB56 ; AC125 ; AC152
Predecessor Tubes 2S22
Successor Tubes 2SB56   2SB55

Base Wires
Filament Solid State
Description

PNP germanium alloy transistor intended as AF low power amplifier.
-


Text in other languages (may differ)
Dimensions (WHD)
incl. pins / tip
6 x 10 x mm / 0.24 x 0.39 x inch
Weight 2 g / 0.07 oz

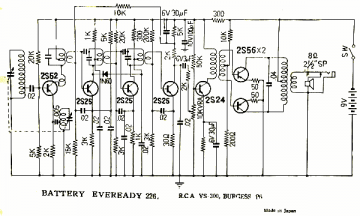

Literature -- Schematic
  2S56: RCA VS300
Günther Stabe

2S56: Andrew Wylie
Günther Stabe


2S56: TTT Steidle 1981
Günther Stabe



Usage in Models 1= 1958?? ; 2= 1958? ; 3= 1958 ; 13= 1959? ; 16= 1959 ; 2= 1960?? ; 3= 1960? ; 4= 1960 ; 1= 1961?? ; 2= 1961? ; 1= 1961 ; 1= 1962?? ; 1= 1967?? ; 1= 1968?? ; 1= 1971 ; 1= 9999? ; 1= 9999

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):54
