Minette 2724

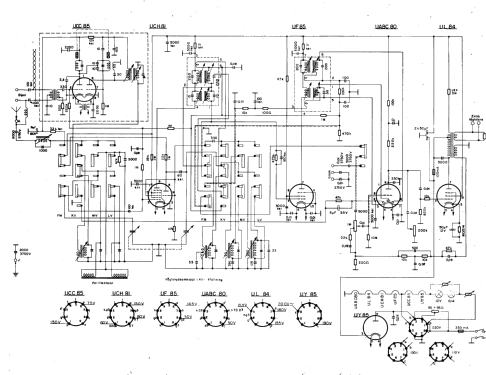

Minette 2724; AGA and Aga-Baltic (ID = 1181244) Radio
Minette 2724; AGA and Aga-Baltic (ID = 1181243) Radio
Use red slider bar for more.
Minette 2724; AGA and Aga-Baltic (ID = 1181243) Radio
AGA and Aga-Baltic: Minette 2724 [Radio] ID = 1181243 800x617
Select picture or schematic to display from thumbnails on the right and click for download.
For model Minette 2724, AGA and Aga-Baltic Radio AB; Sweden

Country:  Sweden
Manufacturer / Brand:  AGA and Aga-Baltic Radio AB; Sweden
alternative name

AGA-Baltic Radio AB; Stockholm
Year: 1957 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: UCC85 UCH81 UF85 UABC80 UL84 UY85
Main principle Superheterodyne (common); ZF/IF 463/? kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage AC/DC-set / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 15 cm = 5.9 inch
Power out
from Radiomuseum.org Model: Minette 2724 - AGA and Aga-Baltic Radio AB;
Material Bakelite case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 315 x 215 x 180 mm / 12.4 x 8.5 x 7.1 inch
Notes Wood front. Elliptical speaker 15 x 9 cm.
Price in first year of sale 275.00 Skr

Model page created by Peter Elg. See "Data change" for further contributors.
