Superb 41

Superb 41; AGA and Aga-Baltic (ID = 13678) Radio

Superb 41; AGA and Aga-Baltic (ID = 374312) Radio

Superb 41; AGA and Aga-Baltic (ID = 374313) Radio

Superb 41; AGA and Aga-Baltic (ID = 374314) Radio

Superb 41; AGA and Aga-Baltic (ID = 374315) Radio

Superb 41; AGA and Aga-Baltic (ID = 374316) Radio
Superb 41; AGA and Aga-Baltic (ID = 182781) Radio Superb 41; AGA and Aga-Baltic (ID = 183362) Radio
Superb 41; AGA and Aga-Baltic (ID = 1254008) Radio Superb 41; AGA and Aga-Baltic (ID = 1254009) Radio
Superb 41; AGA and Aga-Baltic (ID = 1254010) Radio
Use red slider bar for more.
Superb 41; AGA and Aga-Baltic (ID = 182781) Radio

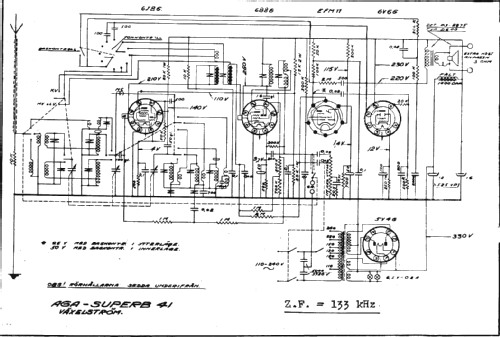

AGA and Aga-Baltic: Superb 41 [Radio] ID = 182781 656x492
Select picture or schematic to display from thumbnails on the right and click for download.
For model Superb 41, AGA and Aga-Baltic Radio AB; Sweden:
Sent by Mr. António M. R. dos Santos

Country:  Sweden
Manufacturer / Brand:  AGA and Aga-Baltic Radio AB; Sweden
alternative name

AGA-Baltic Radio AB; Stockholm
Year: 1940/1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6J8G 6B8G 6V6G 5Y4G EFM11
Main principle Superheterodyne (common)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Superb 41 - AGA and Aga-Baltic Radio AB;
Material Wooden case
Price in first year of sale 385.00 SFR
External source of data E. Erb 3-907007-36-0
Circuit diagram reference Die «Thali Schemasammlung» führt das Modell.


All listed radios etc. from AGA and Aga-Baltic Radio AB; Sweden
Here you find 254 models, 208 with images and 131 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
