222 ; Air King Products Co (ID = 1373798) Radio

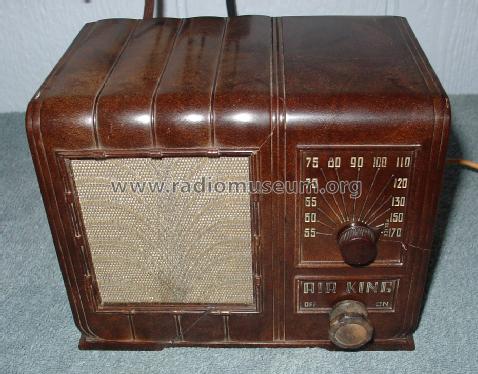

Air King Products Co: 222 [Radio] ID = 1373798 933x731
Select picture or schematic to display from thumbnails on the right and click for download.
For model 222, Air King Products Co.; Brooklyn (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  Air King Products Co.; Brooklyn (NY)
Year: 1939 ? Category: Broadcast Receiver - or past WW2 Tuner

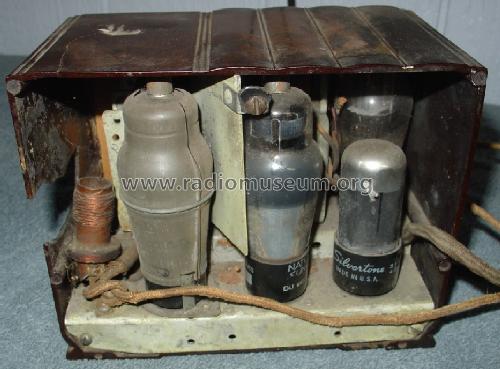

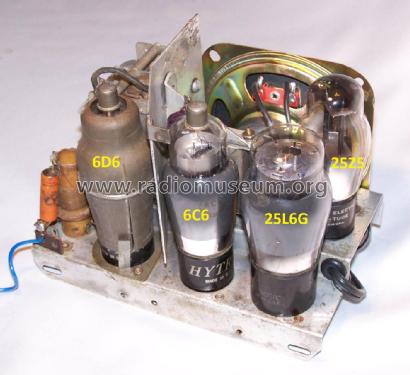

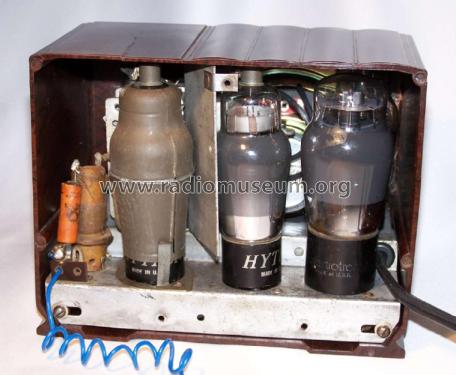

Valves / Tubes 4: 6D6 6C6 25L6G 25Z5
Main principle TRF without regeneration
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 222 - Air King Products Co.;
Notes

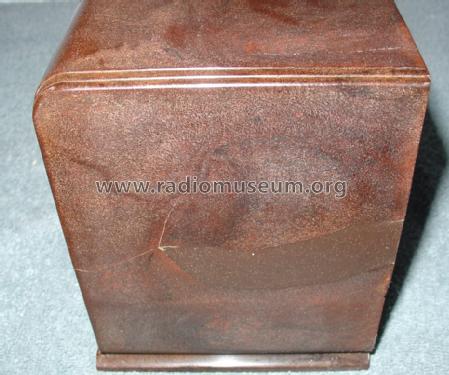

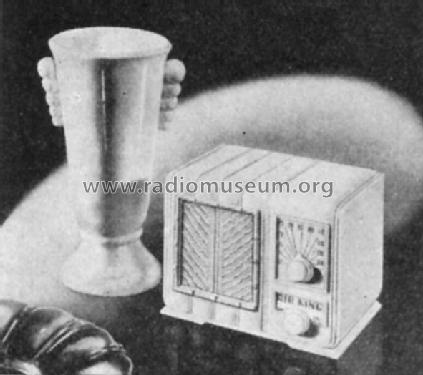

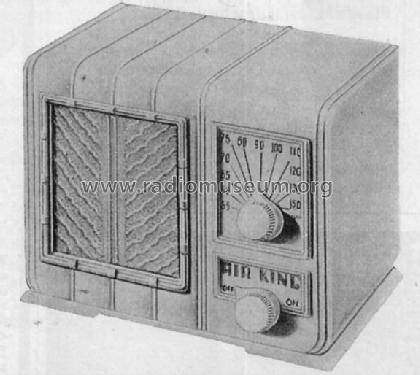

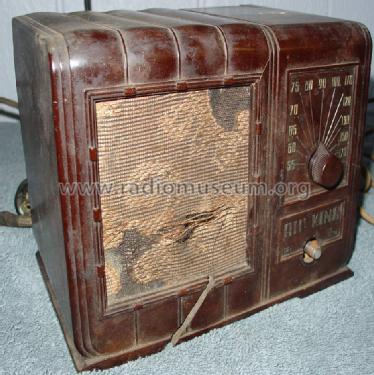

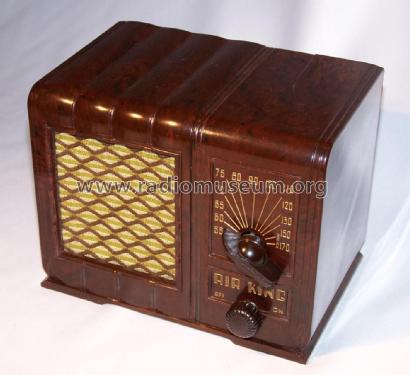

Brown bakelite or ivory plaskon.

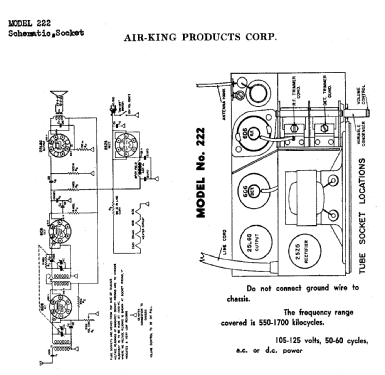

Circuit diagram reference Rider's Perpetual, Volume 9 = 1938 and before
Mentioned in Table Top Radios Vol. 4 Stein 2003 (page 42.)

Model page created by Dirk Taekels. See "Data change" for further contributors.



All listed radios etc. from Air King Products Co.; Brooklyn (NY)
Here you find 272 models, 132 with images and 219 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Air King Products Co: 222
Threads: 1 | Posts: 2
Hits: 236     Replies: 1
airking: Air King Model 222
John Dodgshun
04.Feb.19
  1

I have just finished restoring one of these wee beauties and there is definitely NO regeneration.

Your listing show UNKNOWN regeneration.

Regards

John

Rolf Beckers
04.Feb.19
  2

Dear John,

You are right. I've corrected the statement to No Regeneration.

Regards,

Rolf Beckers


Air King Products Co: 222
End of forum contributions about this model
