Air-King Skyscraper 66 Globes

Air King Products Co.; Brooklyn (NY)

  • Year
  • 1935
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 72045

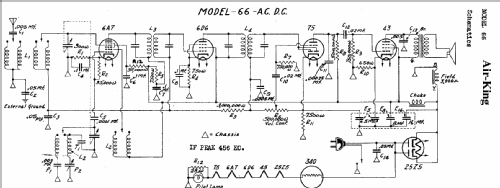

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 456 kHz
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • AC/DC-set / 115 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Bakelite or Plastics (type unknown)
  • from Radiomuseum.org
  • Model: Air-King Skyscraper 66 [Globes] - Air King Products Co.;
  • Shape
  • Design Radio or Novelty / Gadget - fancy or unusual shape.
  • Circuit diagram reference
  • Rider's Perpetual, Volume 6 = 1935 and before
