Unknown 3-Band
Air King Products Co.; Brooklyn (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Air King Products Co.; Brooklyn (NY)
- Year
- 1935 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 352322
- Number of Tubes
- 6
- Valves / Tubes
- 6A8 unknown_Tube 6H6 6F5 6F6 unknown_rectifier
- Main principle
- Superheterodyne (common); Export model
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Unknown 3-Band - Air King Products Co.;
- Shape

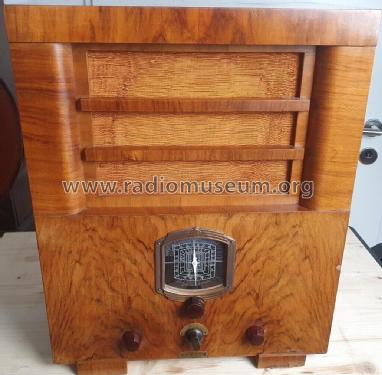

- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Notes
-
Air King Unknown 3-Band radio also has a PHONO input (rear). Export model for the Switzerland market.
The switch in the bottom middle front probably selects the band and maybe PHONO.

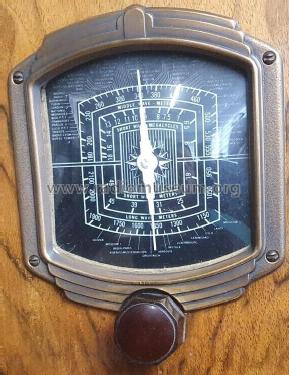

The 3-band frequency ranges are:
MW: 540-1670 kHz
LW: 140-320 kHz
SW: 6-18 MHzSticker on chassis back translates to:
ONLY FOR SWITZERLAND
PHILIPS-STANDARD
TELEFUNKEN LICENSE
NO. 87950
- Author
- Model page created by Wilhelm Siepe. See "Data change" for further contributors.
